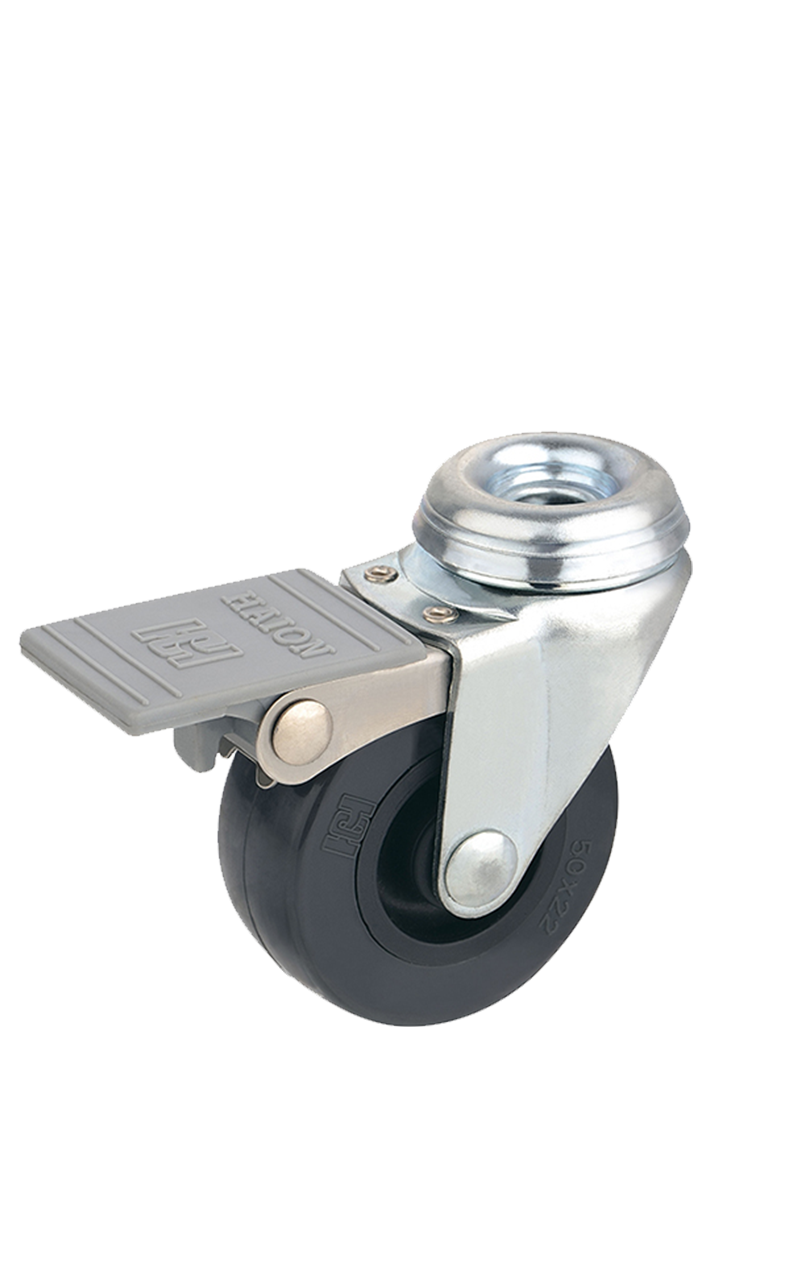

Medical Caster H22-B
For light duty industrial products
點此瀏覽產品資訊
Home | Medical caster | Stretcher & institutional caster | H22-1B050TPP-N
Wheel size
-
50 mm( 2 inch)
TPR (Thermoplastic rubber)
Capability Data
-
Braking Life
(cycles)5000+
-
Dynamic load
(kg/pc)32
-
Static load
(kg/pc)64
Specification Sheet
Compliance
Compliance |
EN12530 |
Specification
Fitting |
M10 |
Total height |
66 mm |
Offset |
21 mm |
Dynamic load |
32 kg/pc |
Static load |
64 kg/pc |
Wheel
Wheel diameter |
50 mm |
Wheel width |
20 mm |
Wheel Material |
TPR (Thermoplastic rubber) |
Brake function
Brake function |
Swivel+ Wheel lock (front brake) |
Color
|
Color |
Zinc |

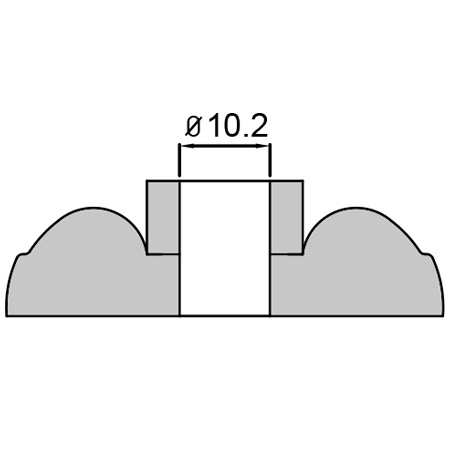

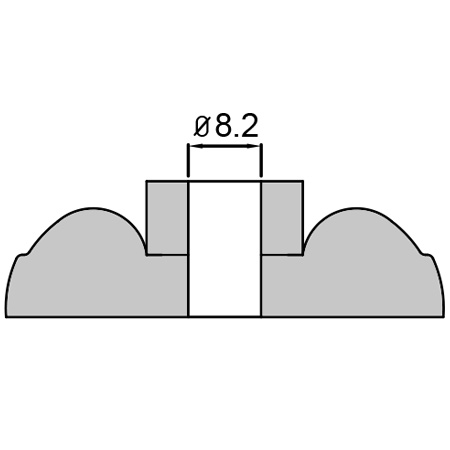

Fitting type
text-aling test
Application
