Medical H598-1A
Patient's safety is ensured by the durable brake system
More
Capable of handy turning even under heavy load.
More
Delivery safety is provided by the metal housing and metal brake system even in emergency.
More
Heavy Duty affordable
More
Effortless, stable, and noiseless movement
More
Reduce 15-20% moving force for delivery man
More
點此瀏覽產品資訊

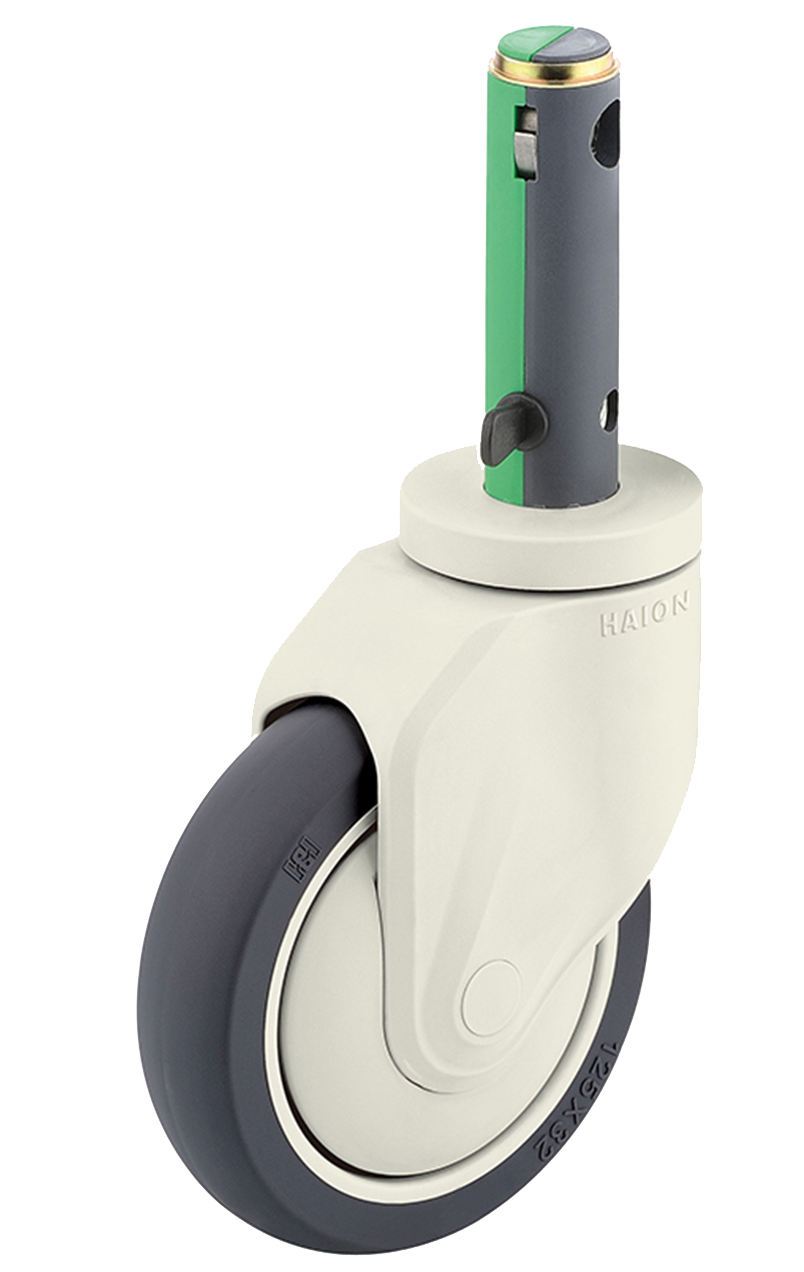

Home | Medical caster | Single wheel central locking caster | H598-1A125UPB(2FT)
Wheel size
-
125 mm( 5 inch)
PU (Polyurethane)
-
150 mm( 6 inch)
PU (Polyurethane)
-
200 mm( 8 inch)
PU (Polyurethane)
Capability Data
-
Braking Life
(cycles)10000+
-
Dynamic load
(kg/pc)160
-
Static load
(kg/pc)480
Specification Sheet
Compliance
Compliance |
EN12531 & RoHs |
Specification

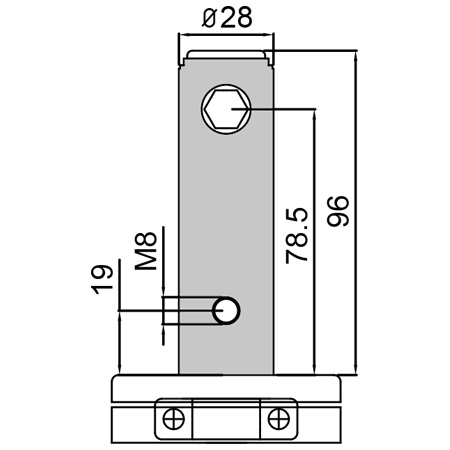

Fitting |
28x96 mm |
Total height |
158 mm |
Offset |
42 mm |
Dynamic load |
160 kg/pc |
Static load |
480 kg/pc |
Wheel
Wheel diameter |
125 mm |
Wheel width |
32 mm |
Wheel Material |
PU (Polyurethane) |
Brake function
Brake function |
Swivel+ Total lock |
Additional option
Electric conductive |
Available |
Antistatic |
Available |
Washable |
Available |
PAS (Power Assist System) |
Available |
Color
|
Color |
RAL 9002 |
| RAL 7035 |

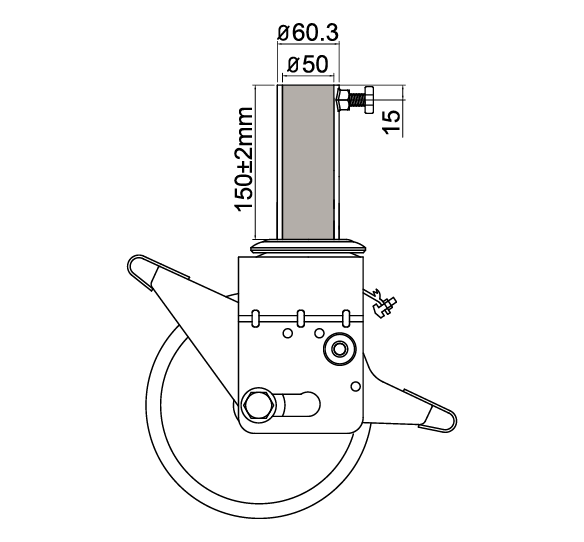

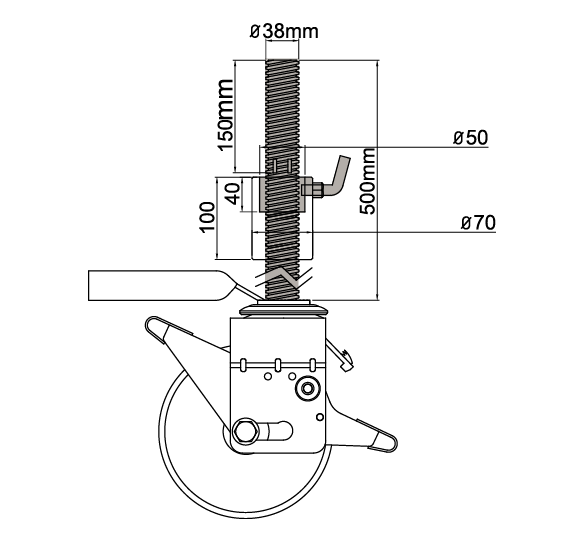

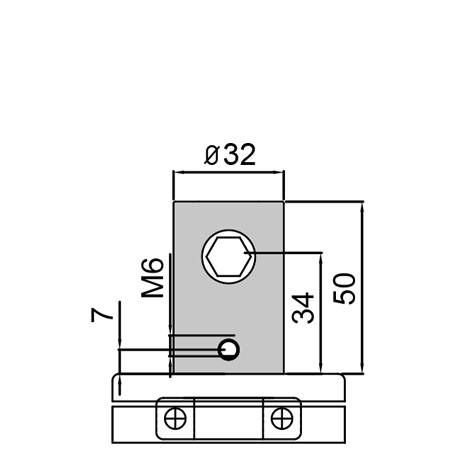

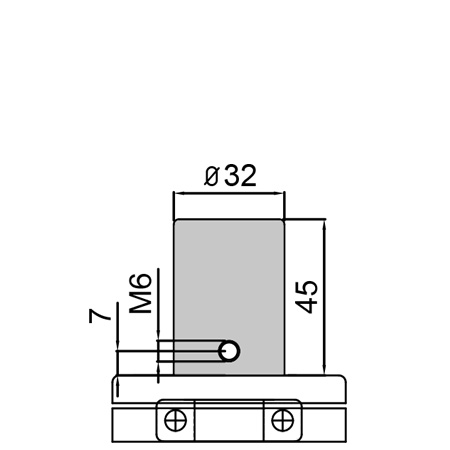

Fitting type

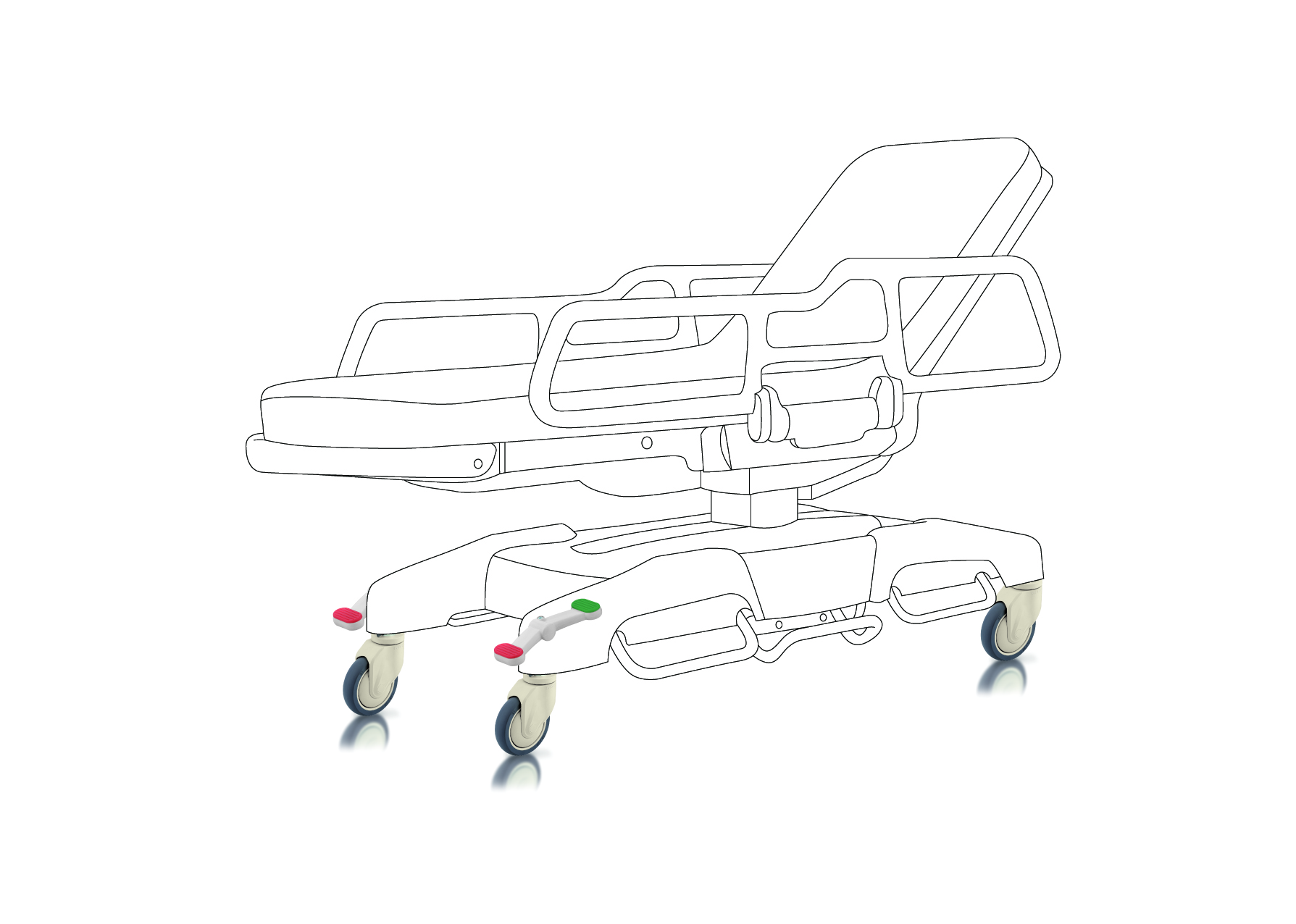

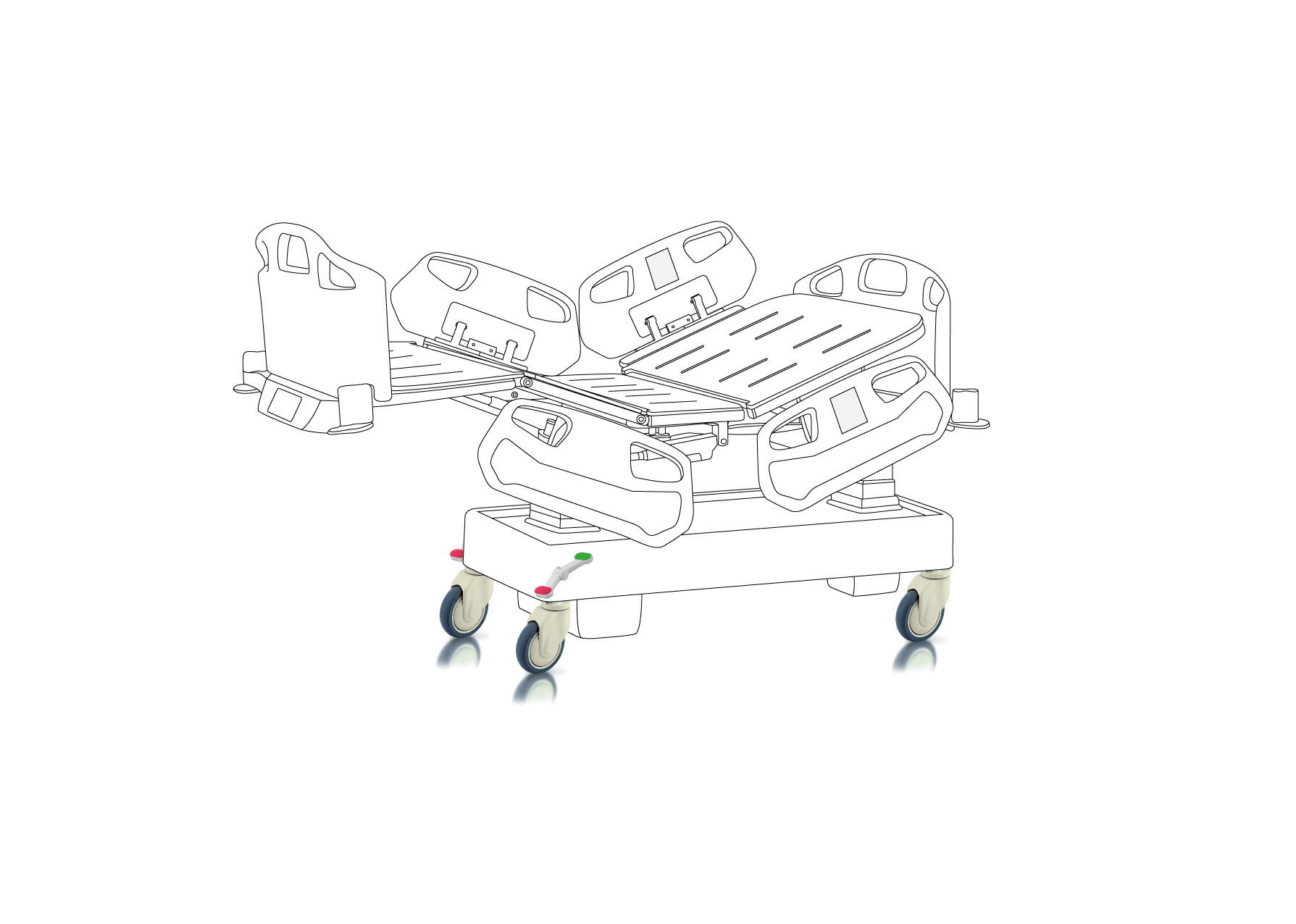

Application
