Compare
Advantage
Scaffolding HP12-T
Ajustable working height is up to 350mm
More
Heavy loading (SWL: 1300kgs/pc)
More
Worker's safety is ensured by high precision brake
More
Safety is ensured by the simple visual check of the brake
More
Wheel materials are optional for matching various demands of using environment
More
點此瀏覽產品資訊

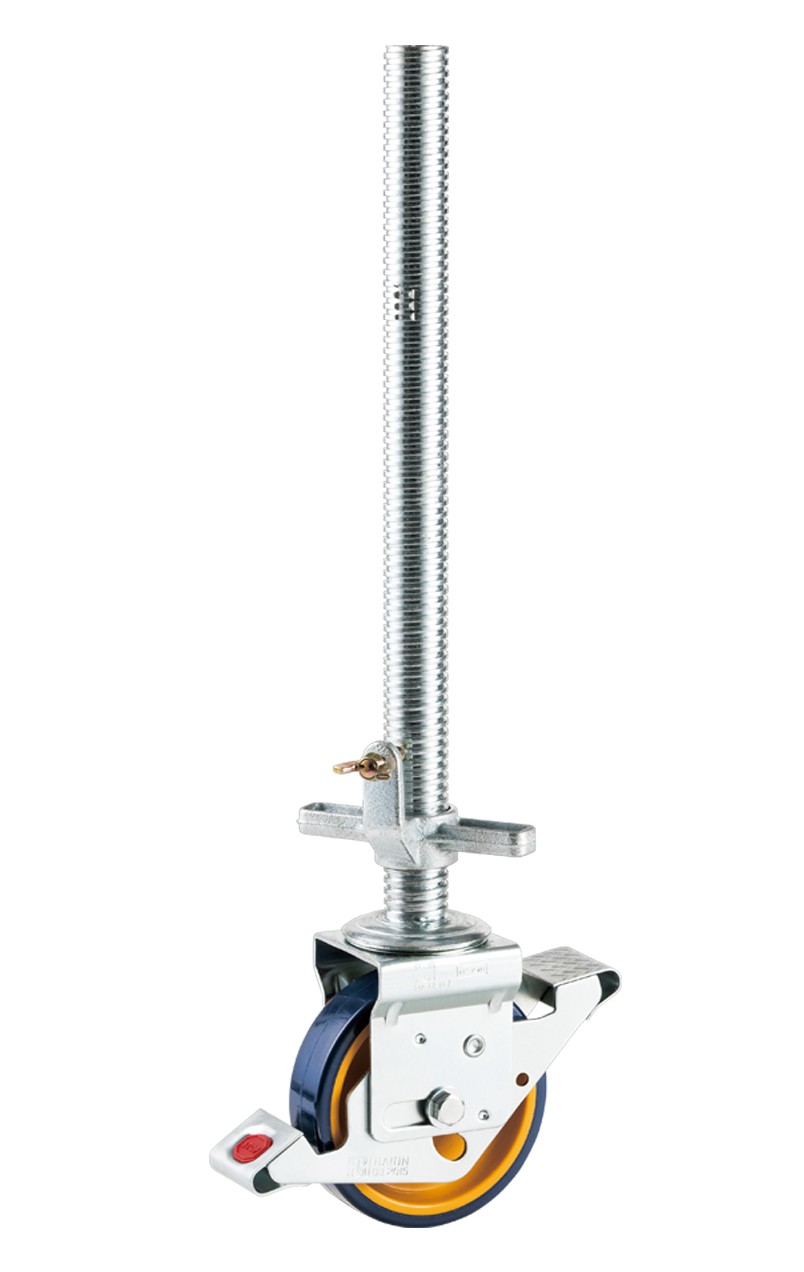

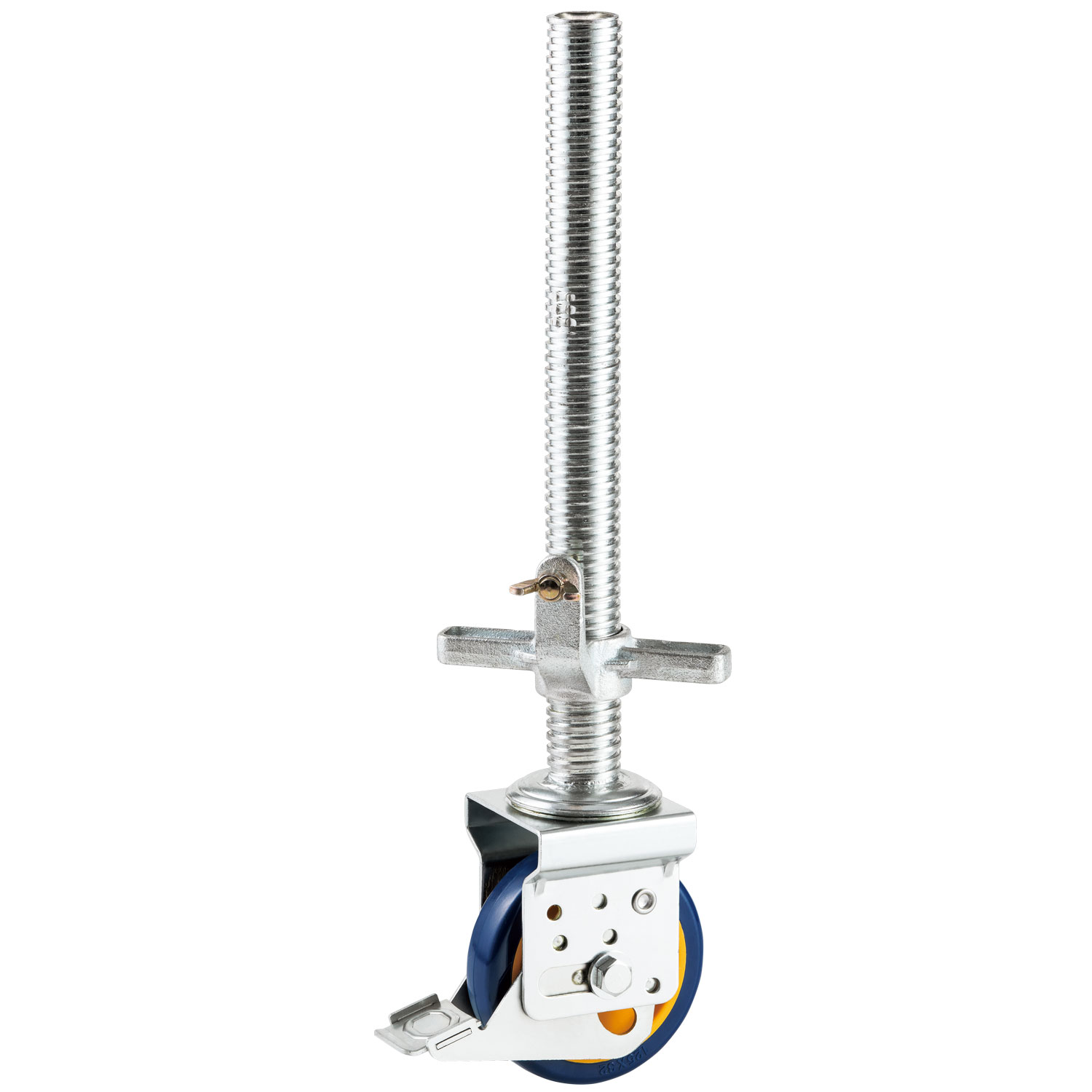

Home | Scaffold caster | Spindle (Single wheel) | HP12-T-8UNPS
Wheel size
-
125 mm( 5 inch)
Nylon
-
125 mm( 5 inch)
PU
-
150 mm( 6 inch)
Nylon
-
150 mm( 6 inch)
PU
-
200 mm( 8 inch)
Nylon
-
200 mm( 8 inch)
PU
-
200 mm( 8 inch)
TPR
Capability Data
-
SWL
(kg/pc)0800 kg/pc
-
Safety factor
3
-
Deformation after testing max load for 5 times
(mm)< 15
Specification Sheet
Compliance
Compliance |
200 mm PU/Nylon |
Wheel size
Wheel size |
EN1004 |

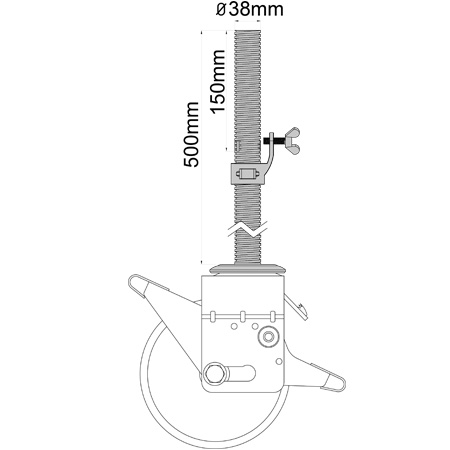

Specification
Fitting |
38x500 mm |
SWL |
800 kg/pc |
Wheel
Wheel diameter |
200 mm |
Wheel width |
50 mm |
Wheel Material |
PU |
Function
Brake |
Total lock |
Fitting type
Application
