Compare
Advantage
Scaffolding HP24
Ajustable working height is up to 350mm
More
Heavy loading (SWL: 1500kgs/pc)
More
Worker's safety is ensured by high precision brake
More
Stable and safe movement
More
Effortless moving, reducing manpower requirement
More
Safety is ensured by the simple visual check of the brake
More
點此瀏覽產品資訊
Home | Scaffold caster | Spindle (Double wheel) | HP24-T-8UNB
Wheel size
-
200 mm( 8 inch)
PU
-
200 mm( 8 inch)
Nylon
Capability Data
-
SWL
(kg/pc)1500 kg/pc
-
Safety factor
3
-
Deformation after testing max load for 5 times
(mm)< 15
Specification Sheet
Compliance
Compliance |
200 mm PU/Nylon |
Wheel size
Wheel size |
EN1004 |

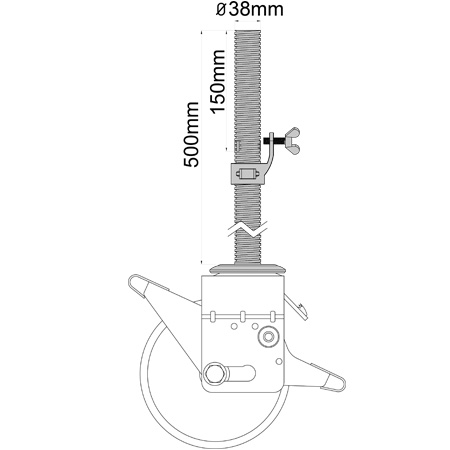

Specification
Fitting |
38x500 mm |
SWL |
1500 kg/pc |
Wheel
Wheel diameter |
200 mm |
Wheel width |
50 mm |
Wheel Material |
PU |
Function
Brake |
Total lock |
Fitting type
Application
