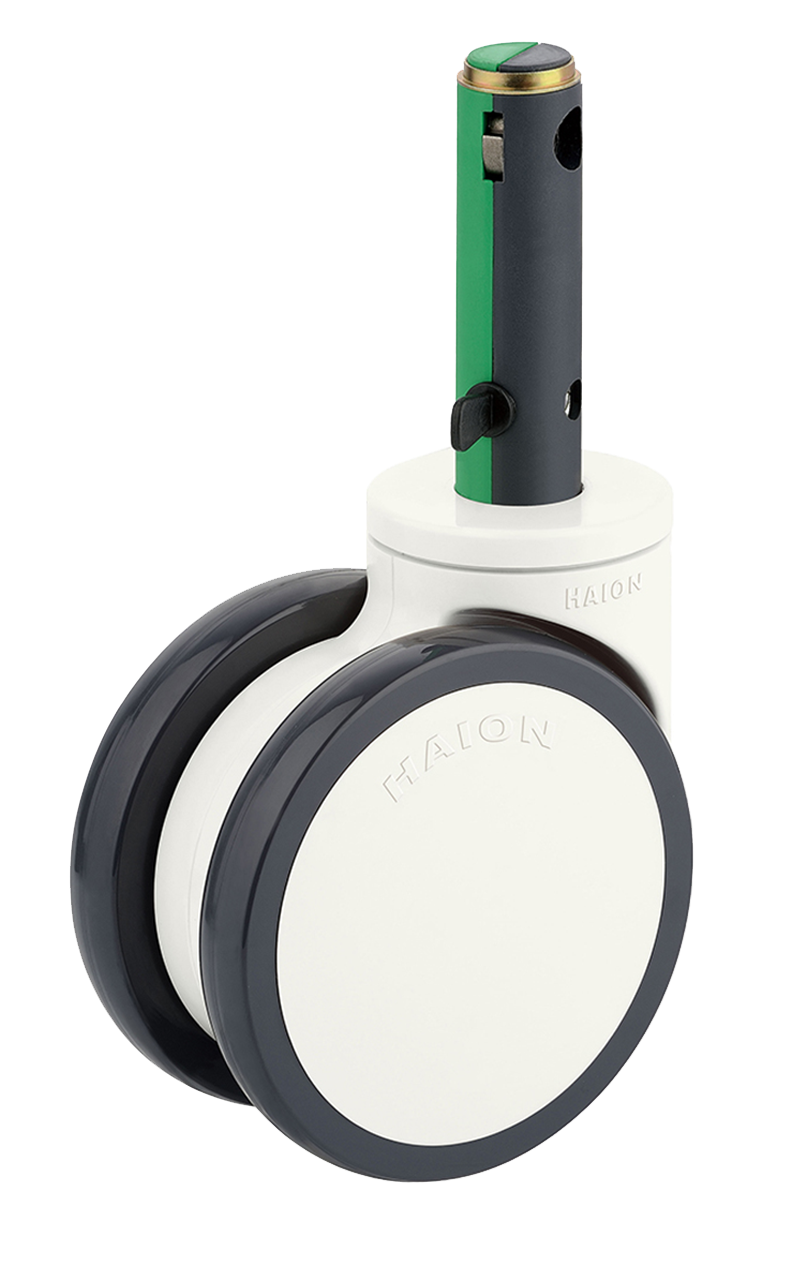

Home | Medical caster | Double wheel central locking caster | H355-1A125TPB(3FN)
Wheel size
-
125 mm( 5 inch)
TPR (Thermoplastic rubber)
-
150 mm( 6 inch)
TPR (Thermoplastic rubber)
Capability Data
-
Braking Life
(cycles)10000+
-
Dynamic load
(kg/pc)110
-
Static load
(kg/pc)330
Specification Sheet
Compliance
Compliance |
EN12531 & RoHs |
Specification

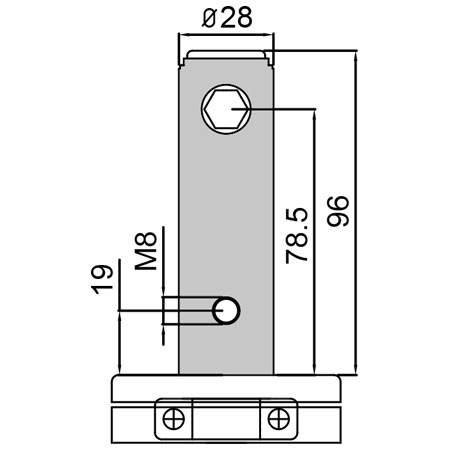

Fitting |
28x96 mm |
Total height |
145 mm |
Offset |
37 mm |
Dynamic load |
110 kg/pc |
Static load |
330 kg/pc |
Wheel
Wheel diameter |
125 mm |
Wheel width |
70 mm |
Wheel Material |
TPR (Thermoplastic rubber) |
Brake function
Brake function |
Swivel+ Total lock + Direction lock |
Additional option
Electric conductive |
Available |
Antistatic |
Available |
Washable |
Available |
PAS (Power Assist System) |
Available |
Color
|
Color |
RAL 9003 |
| RAL 7042 | |
| RAL 9005 |

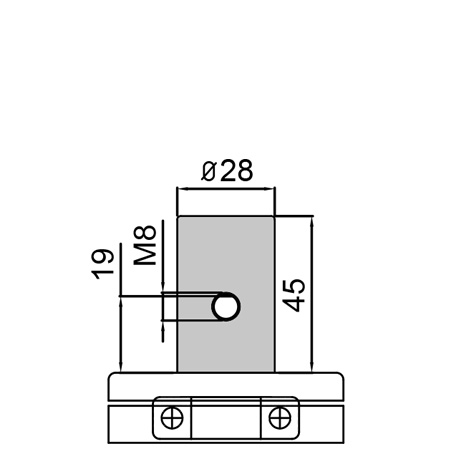

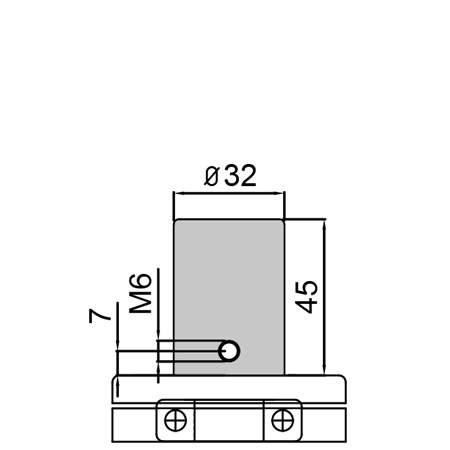

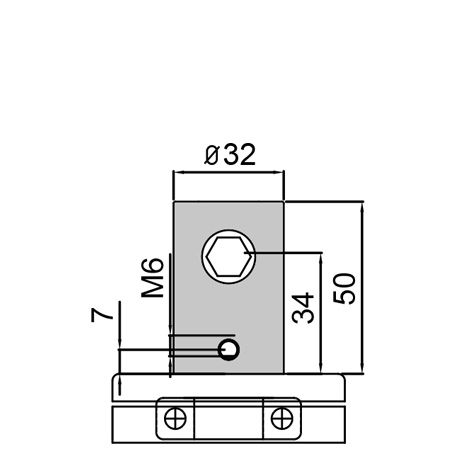

Fitting type

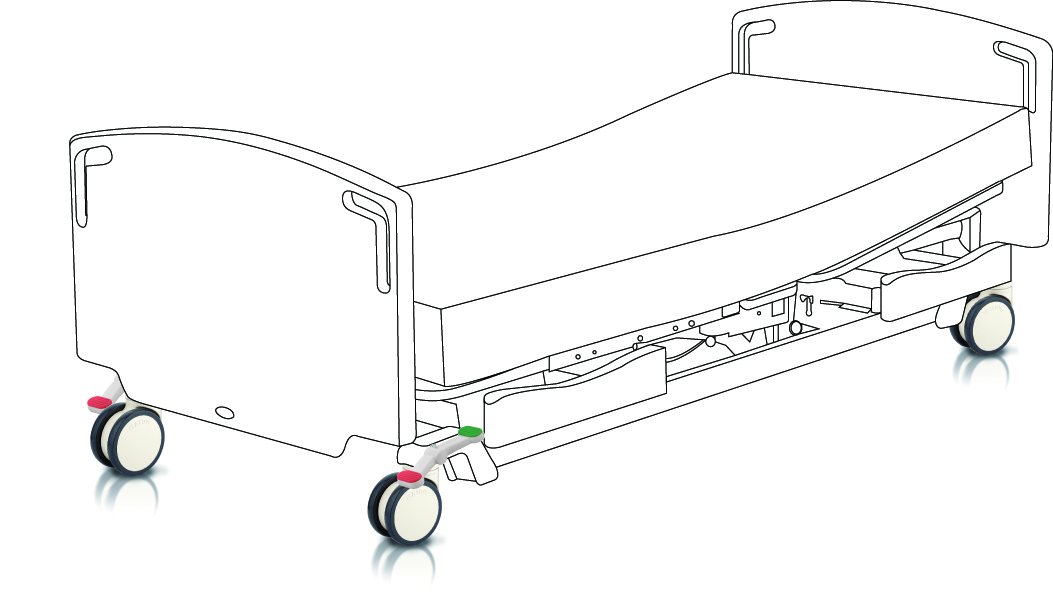

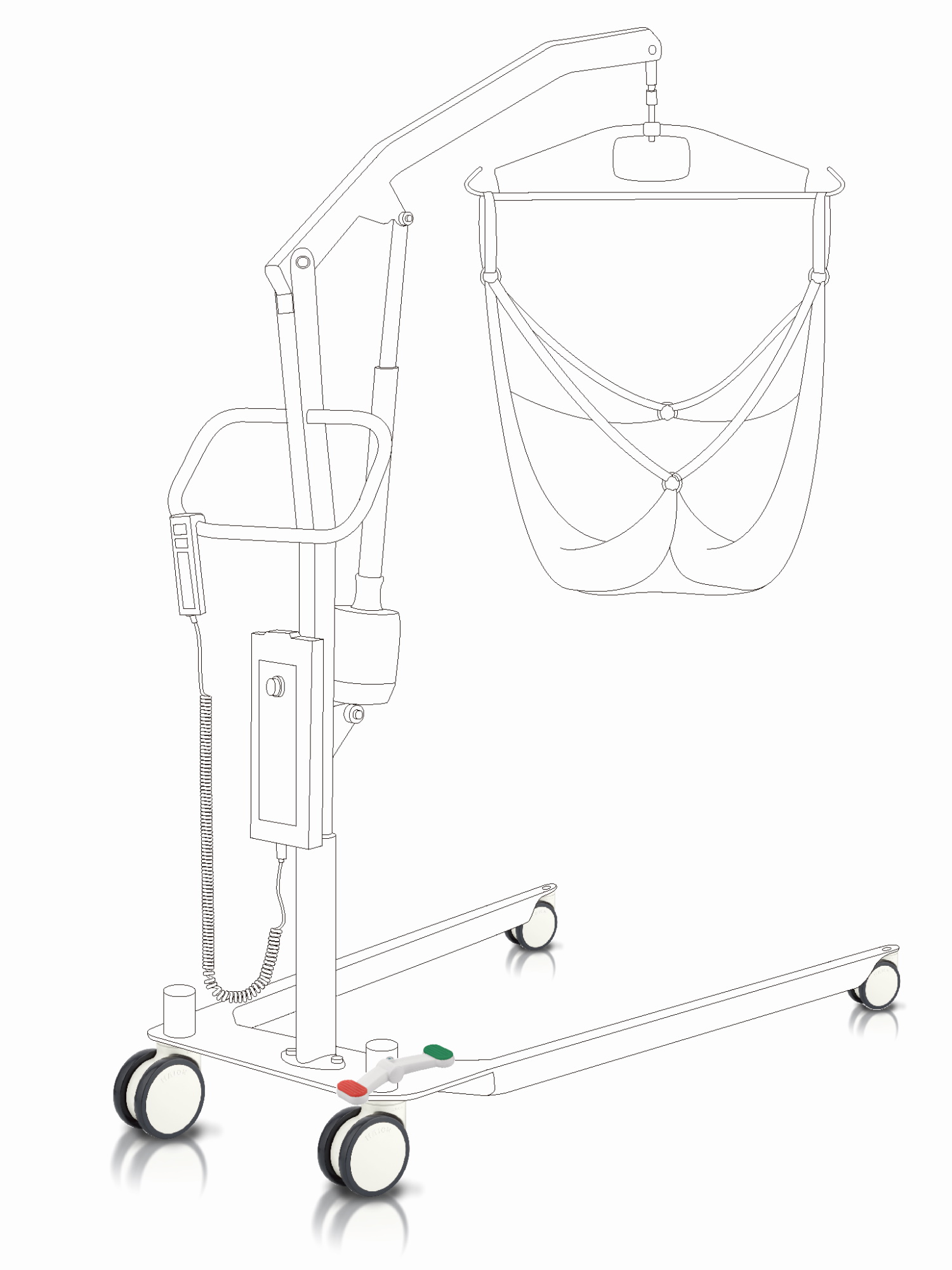

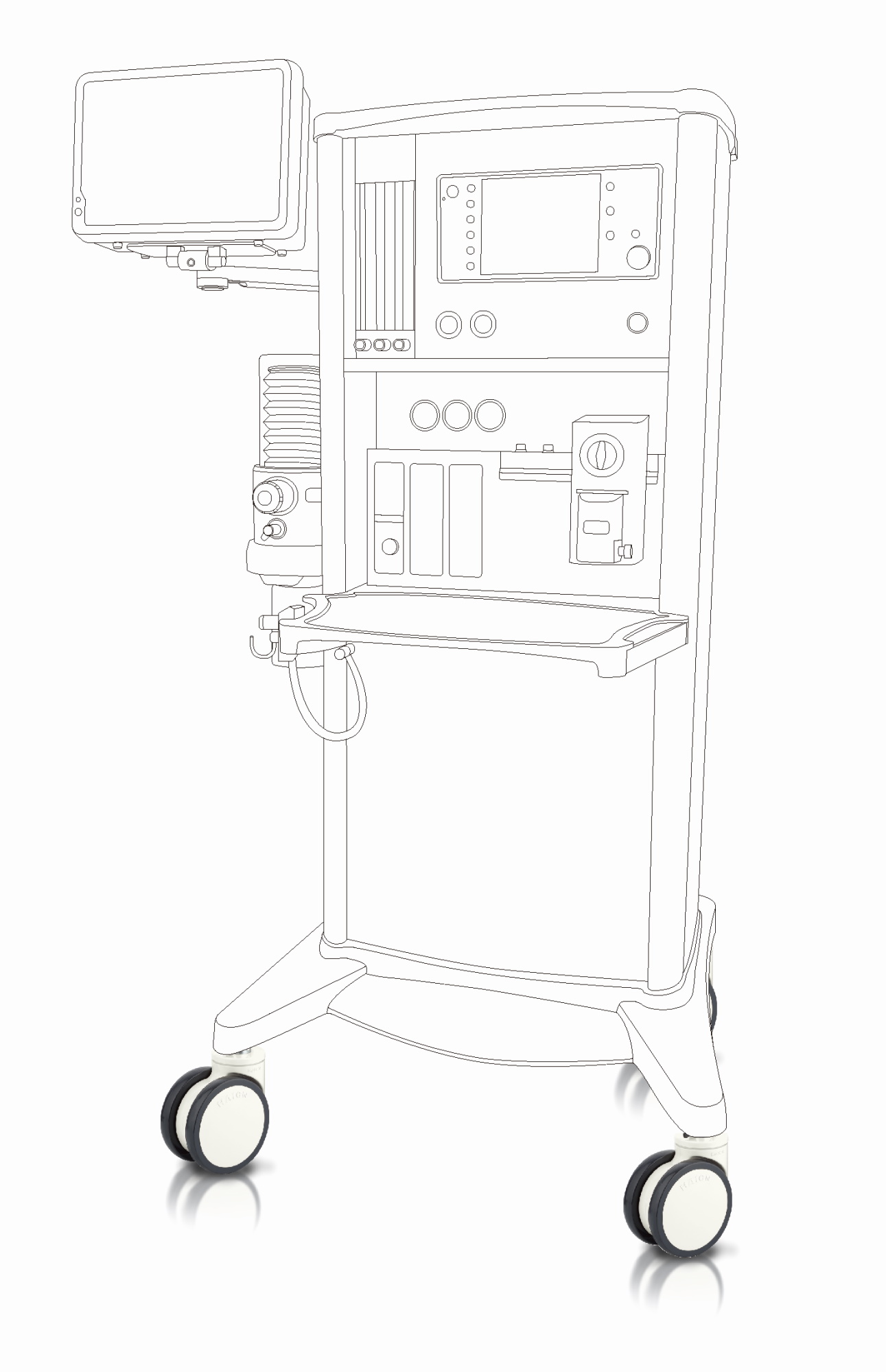

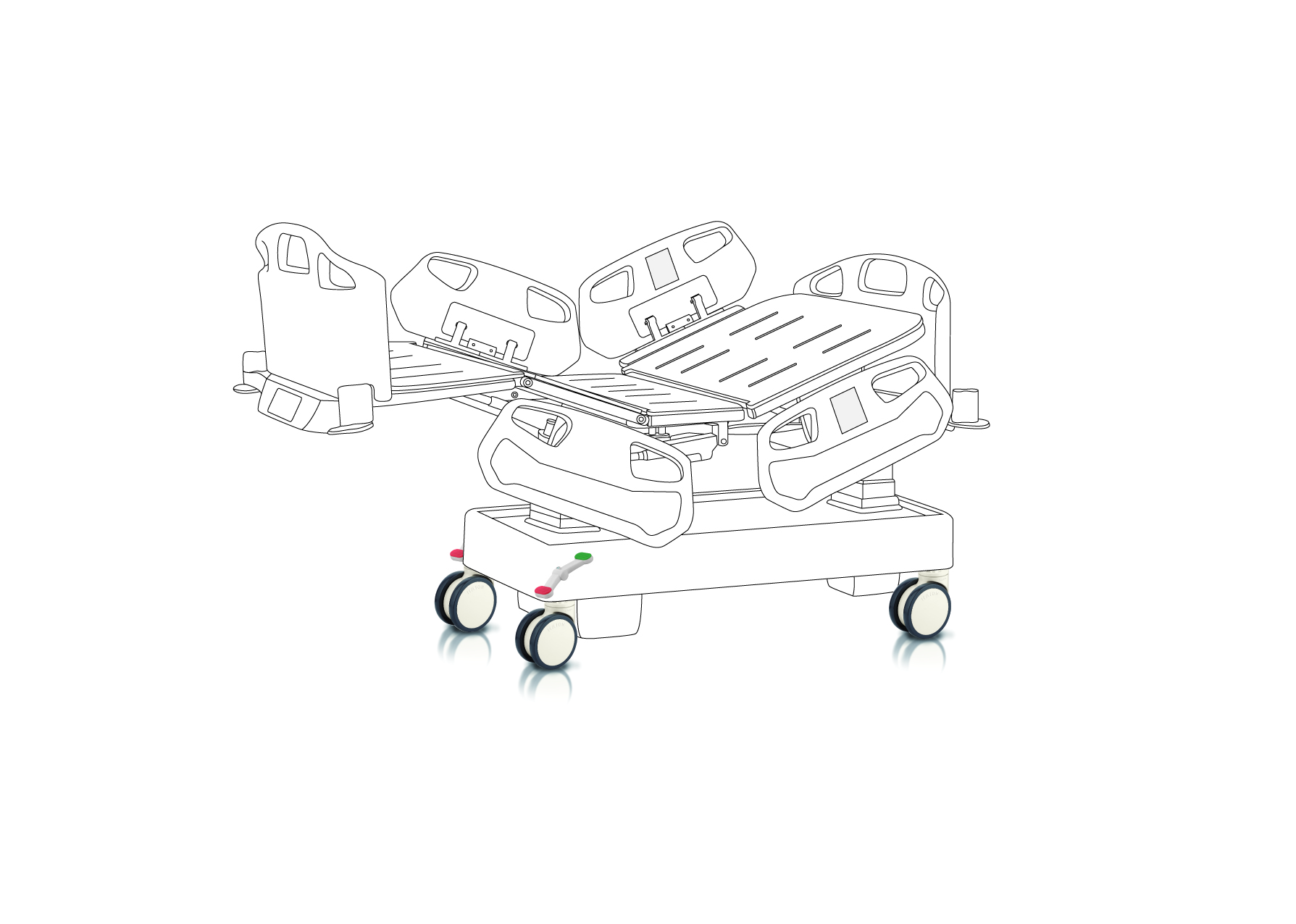

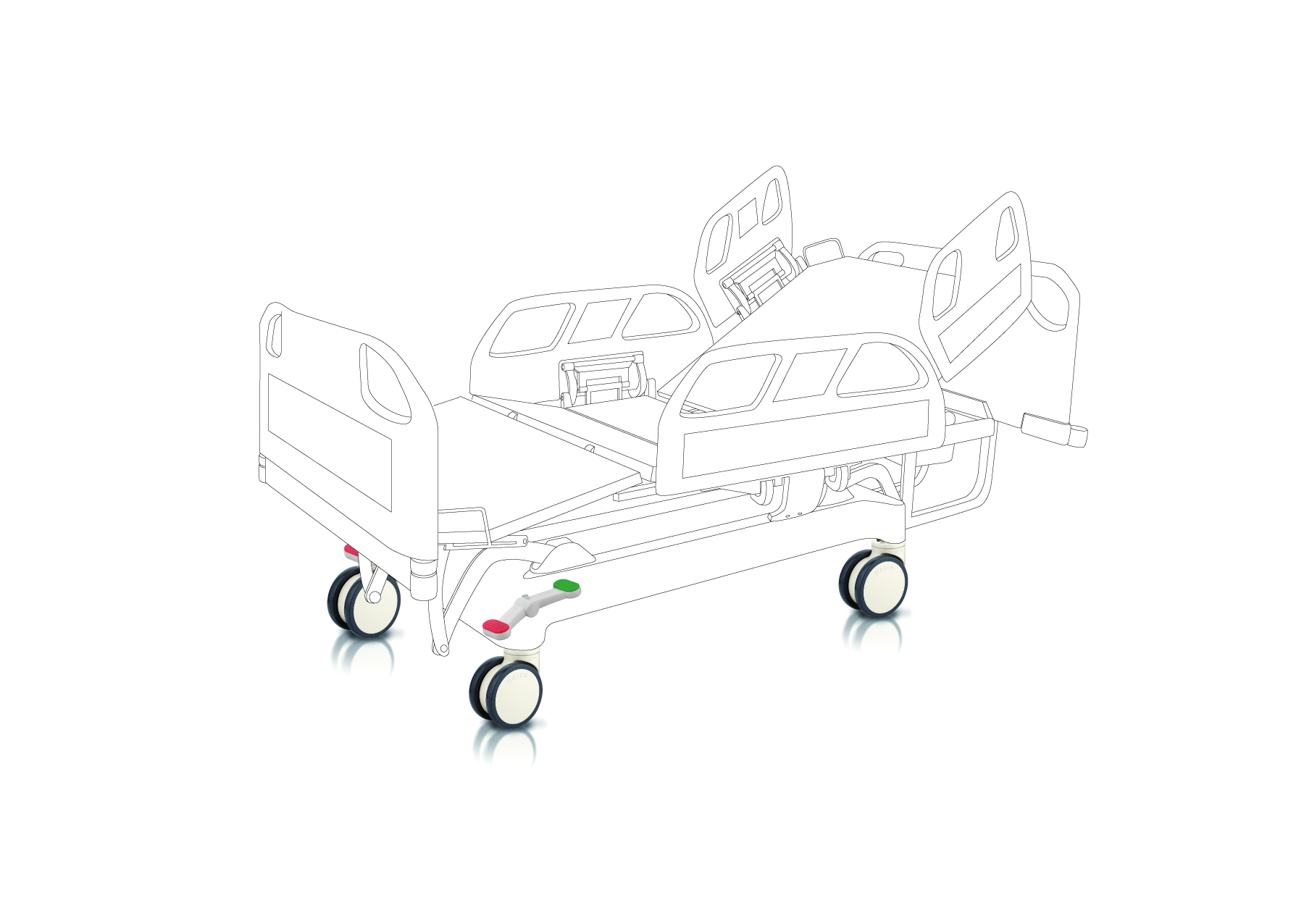

Application
