Medical H396-3A
Patient's safety is ensured by the durable brake system
More
Effortless, stable, and noiseless movement
More
Reduce 15-20% moving force for delivery man
More
The balance between function and budget
More
點此瀏覽產品資訊

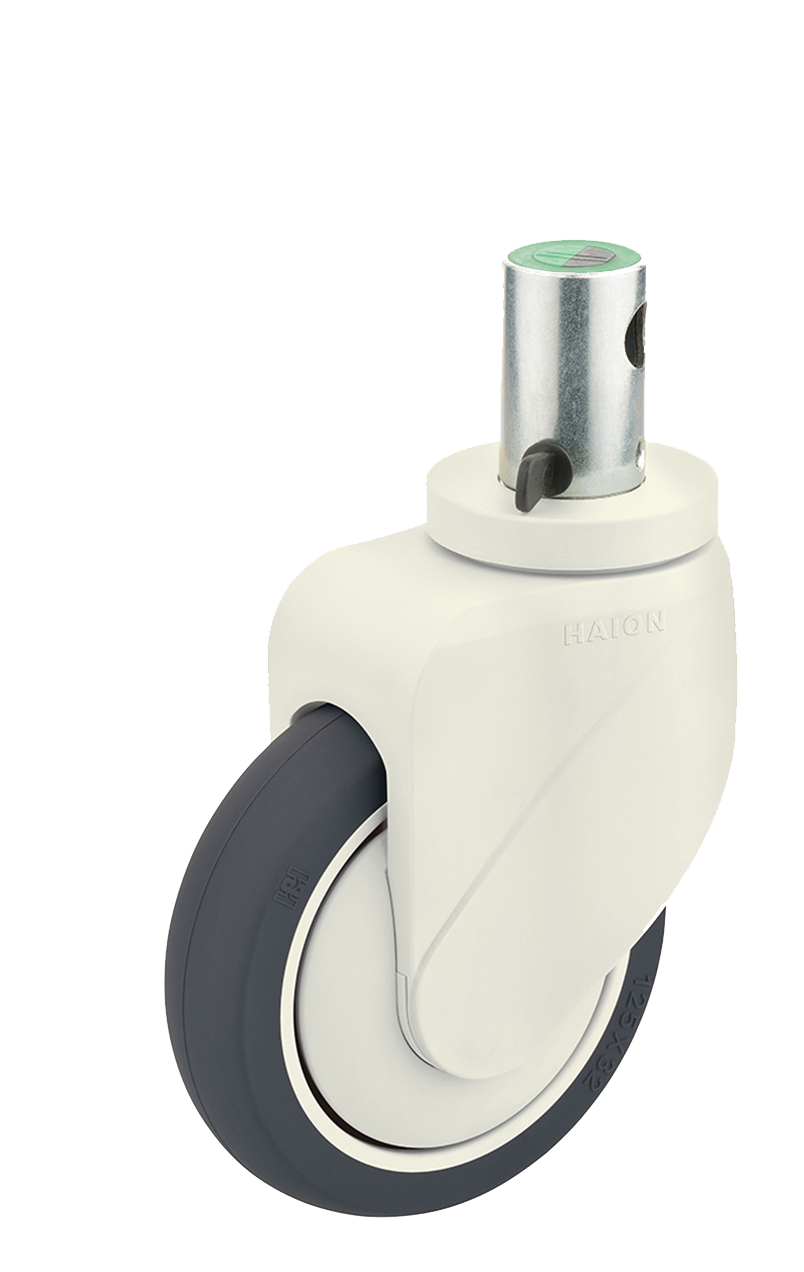

Home | Medical caster | Single wheel central locking caster | H396-3A125TPB(2FT)
Wheel size
-
125 mm( 5 inch)
TPR (Thermoplastic rubber)
-
150 mm( 6 inch)
TPR (Thermoplastic rubber)
-
200 mm( 8 inch)
TPR (Thermoplastic rubber)
Capability Data
-
Braking Life
(cycles)10000+
-
Dynamic load
(kg/pc)110
-
Static load
(kg/pc)330
Specification Sheet
Compliance
Compliance |
EN12531 & RoHs |
Specification

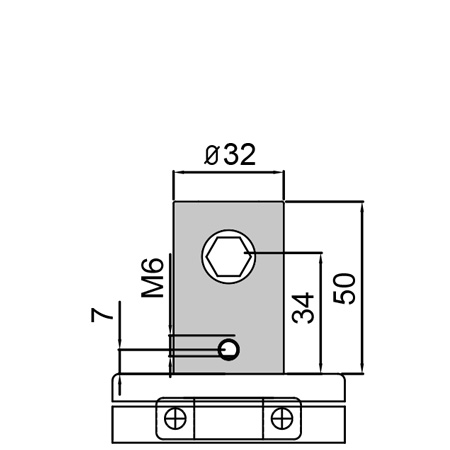

Fitting |
32x50 mm |
Total height |
163 mm |
Offset |
42 mm |
Dynamic load |
110 kg/pc |
Static load |
330 kg/pc |
Wheel
Wheel diameter |
125 mm |
Wheel width |
32 mm |
Wheel Material |
TPR (Thermoplastic rubber) |
Brake function
Brake function |
Swivel+ Total lock |
Additional option
Electric conductive |
Available |
Antistatic |
Available |
PAS (Power Assist System) |
Available |
Color
|
Color |
RAL 9002 |
| RAL 7035 | |
| RAL 9005 | |
| RAL 7015 |

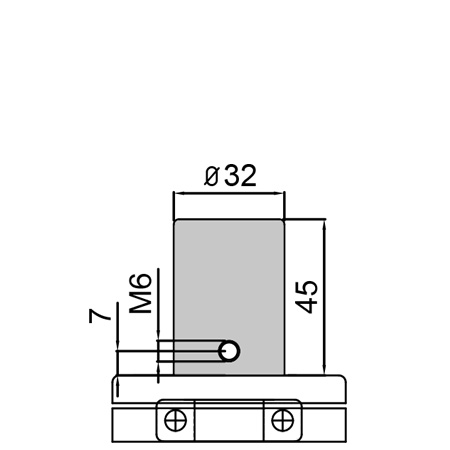

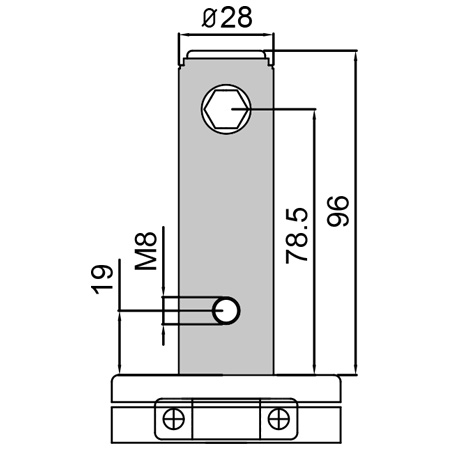

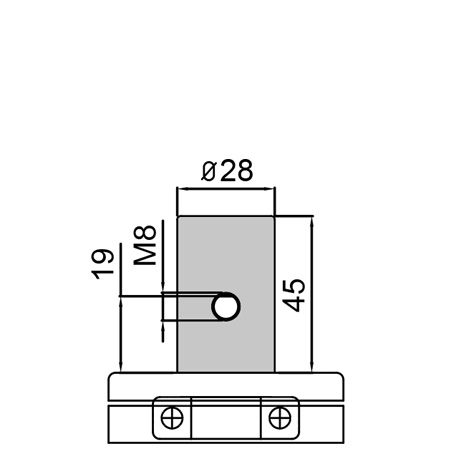

Fitting type

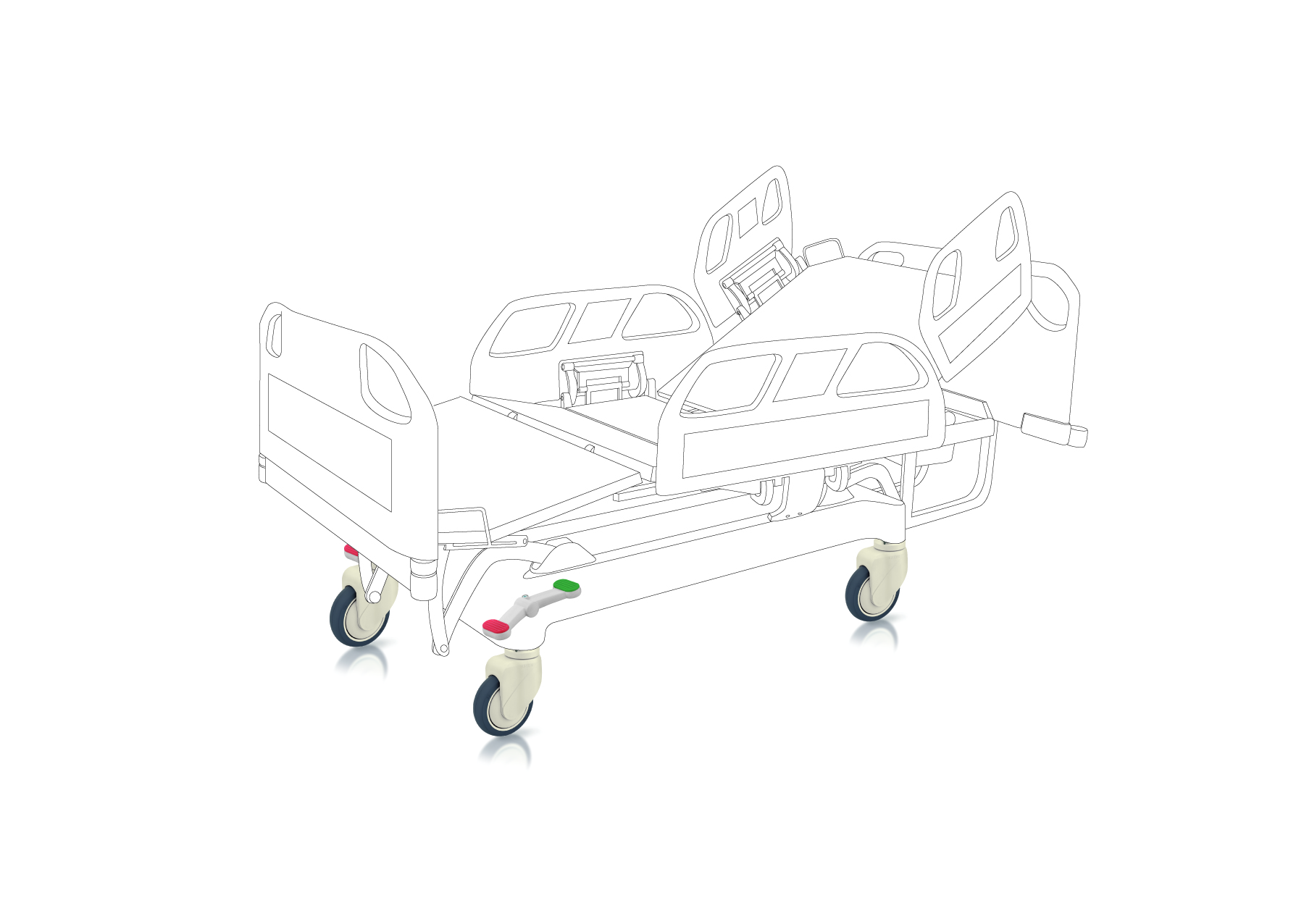

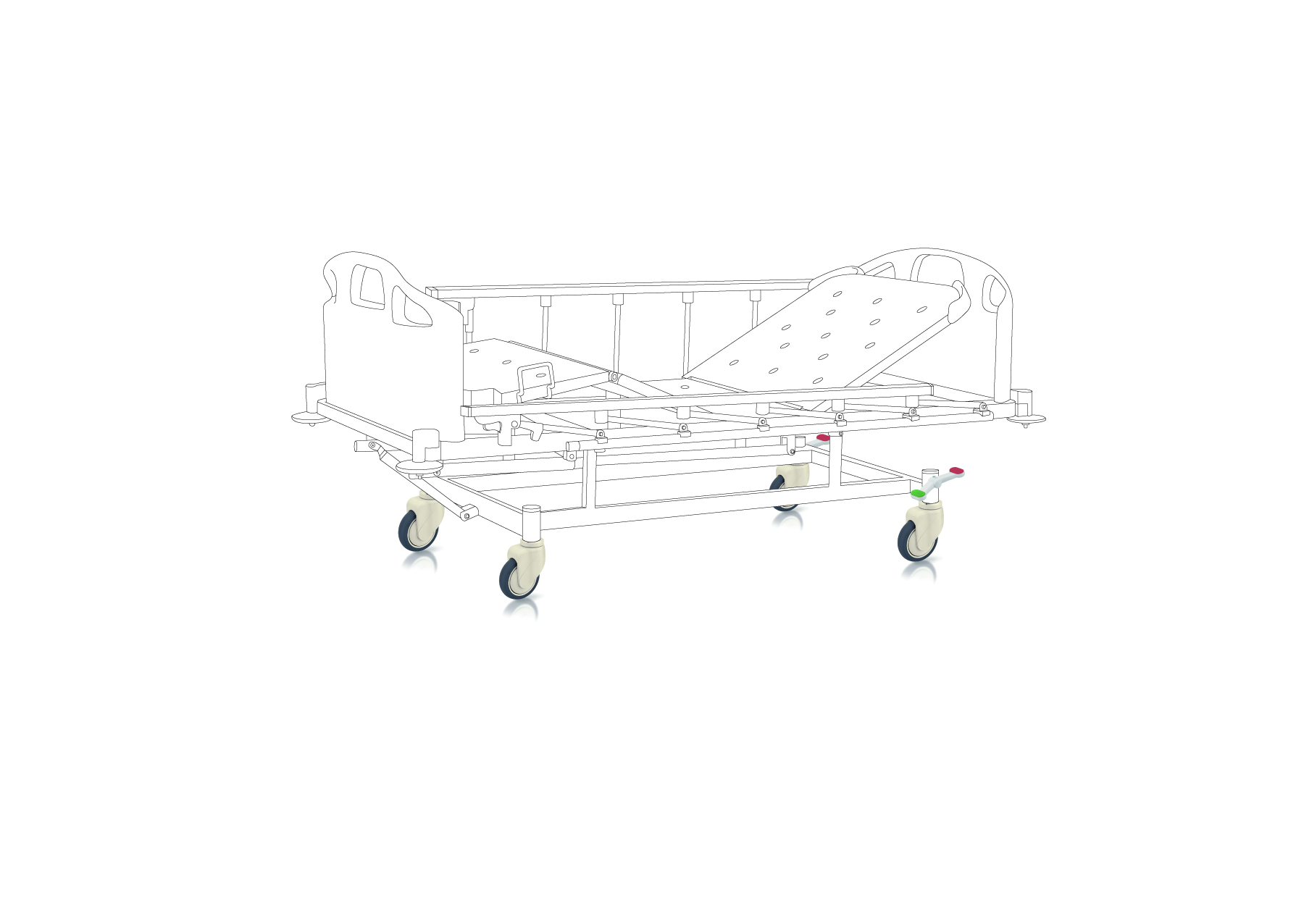

Application
