Compare
Advantage

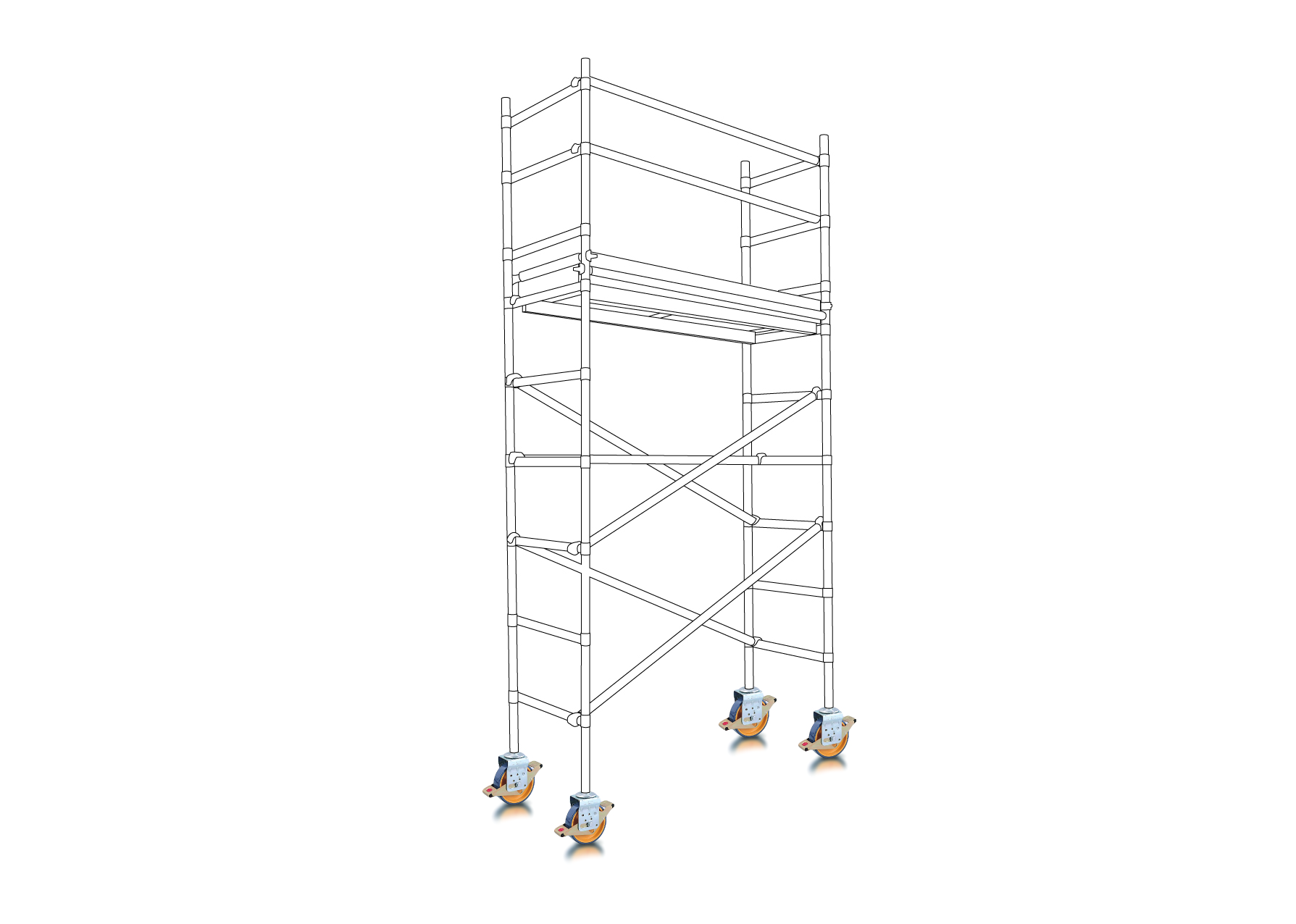

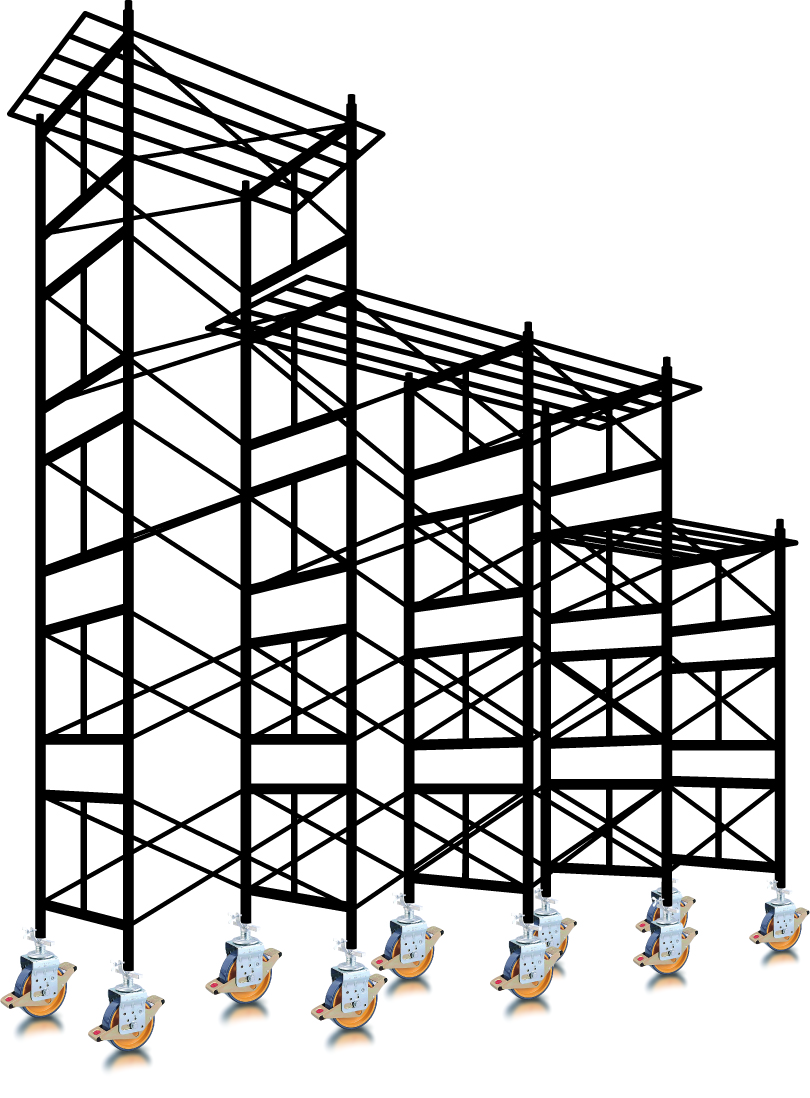

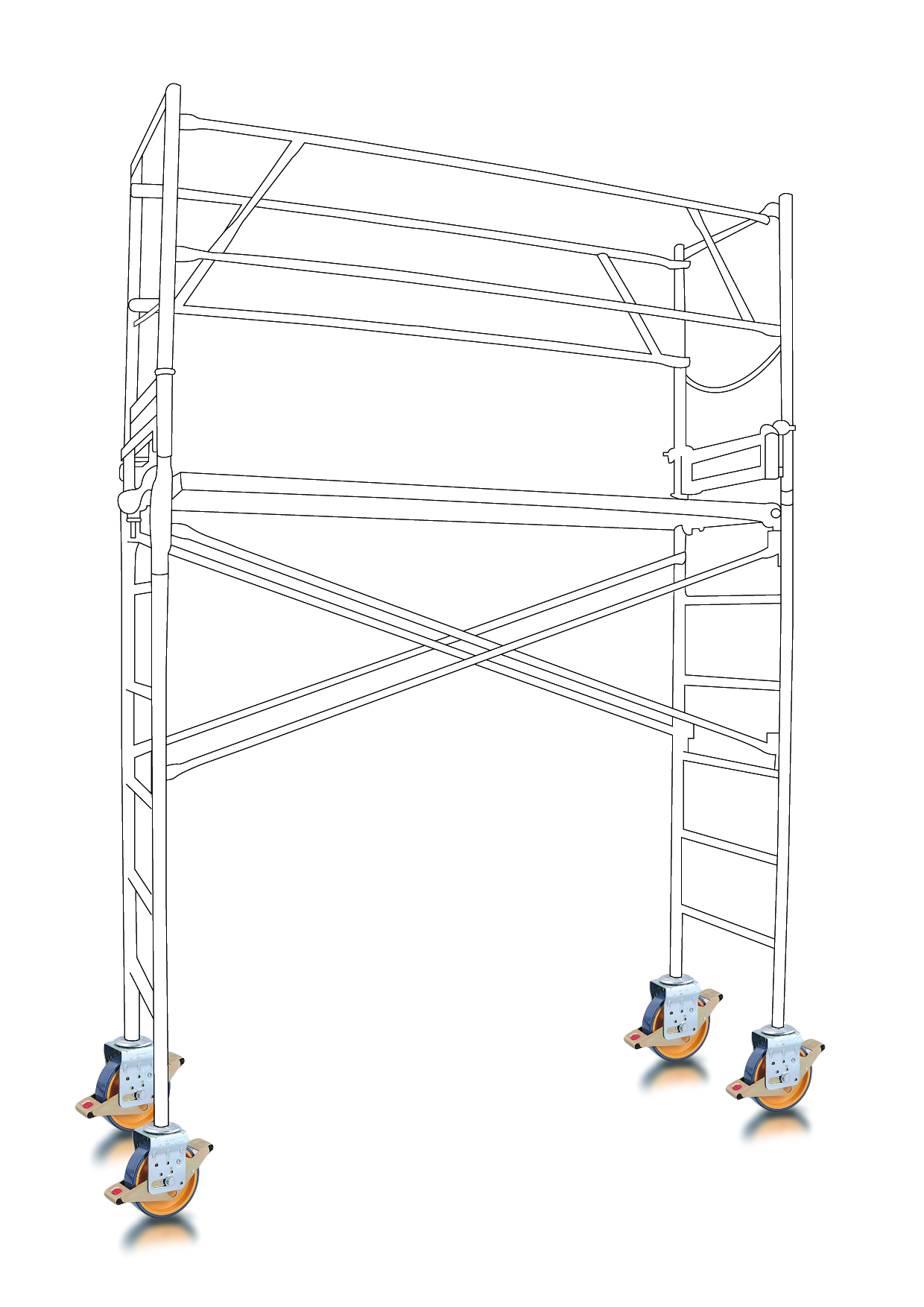

Scaffolding HP12-AT
Ajustable working height is up to 300mm
More
Heavy loading (SWL: 1000kgs/pc)
More
Worker's safety is ensured by high precision brake
More
Safety is ensured by the simple visual check of the brake
More
點此瀏覽產品資訊

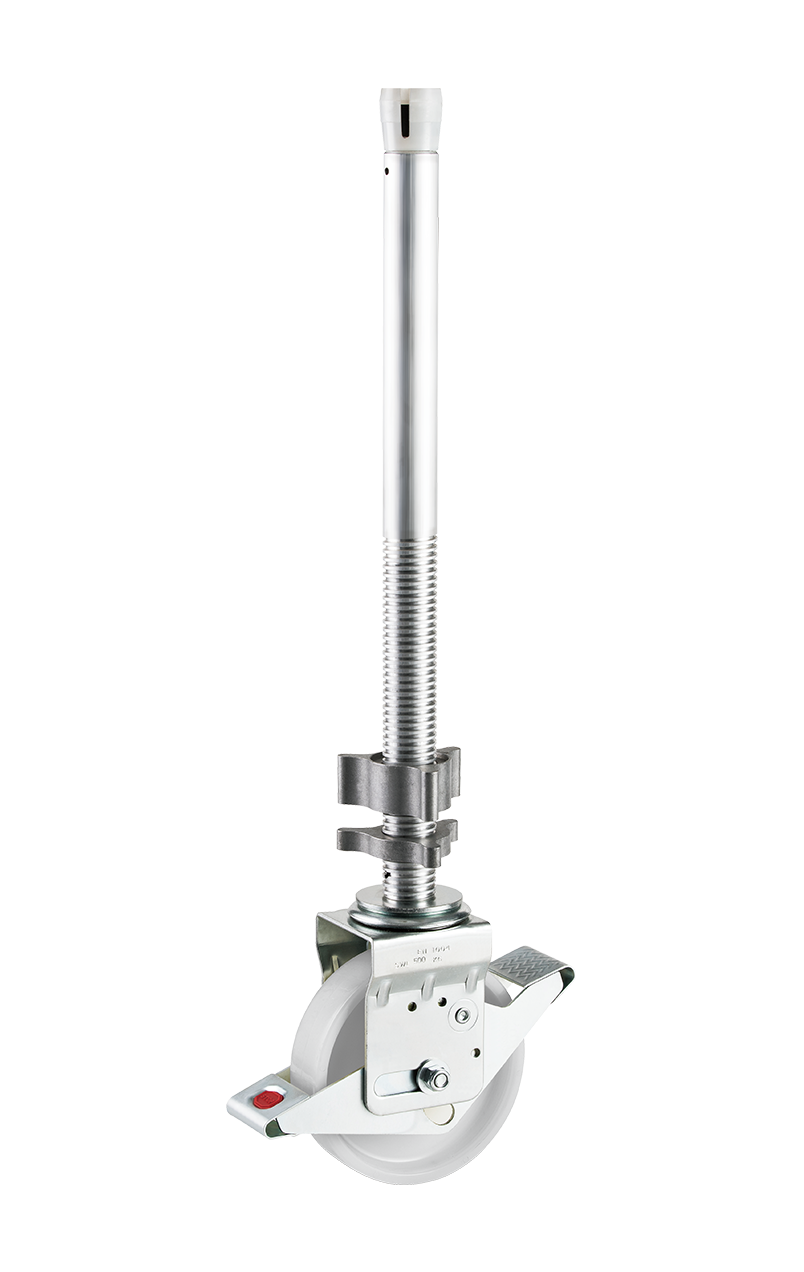

Home | Scaffold caster | Aluminum spindle and nut | HP12-AT-M8NYPS
Wheel size
-
200 mm( 8 inch)
Nylon
-
200 mm( 8 inch)
PU
Capability Data
-
SWL
(kg/pc)1000 kg/pc
-
Safety factor
3
-
Deformation after testing max load for 5 times
(mm)< 15
Specification Sheet
Compliance
Compliance |
200 mm Nylon |
Wheel size
Wheel size |
EN1004 |

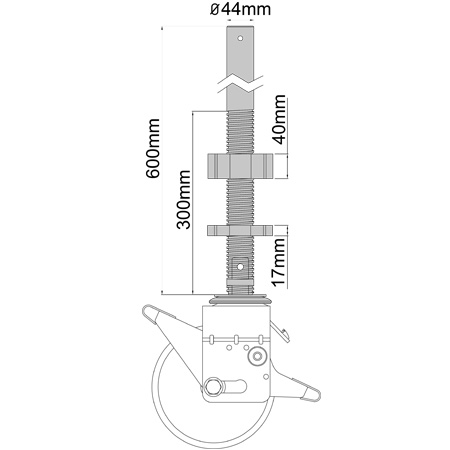

Specification
Fitting |
44x600 mm |
SWL |
1000 kg/pc |
Wheel
Wheel diameter |
200 mm |
Wheel width |
50 mm |
Wheel Material |
Nylon |
Function
Brake |
Total lock |
Fitting type
Application
