Scaffolding HP12-B
Worker's safety is ensured by high precision brake
More
Safety is ensured by the simple visual check of the brake
More
Wheel materials are optional for matching various demends of using environment
More
點此瀏覽產品資訊

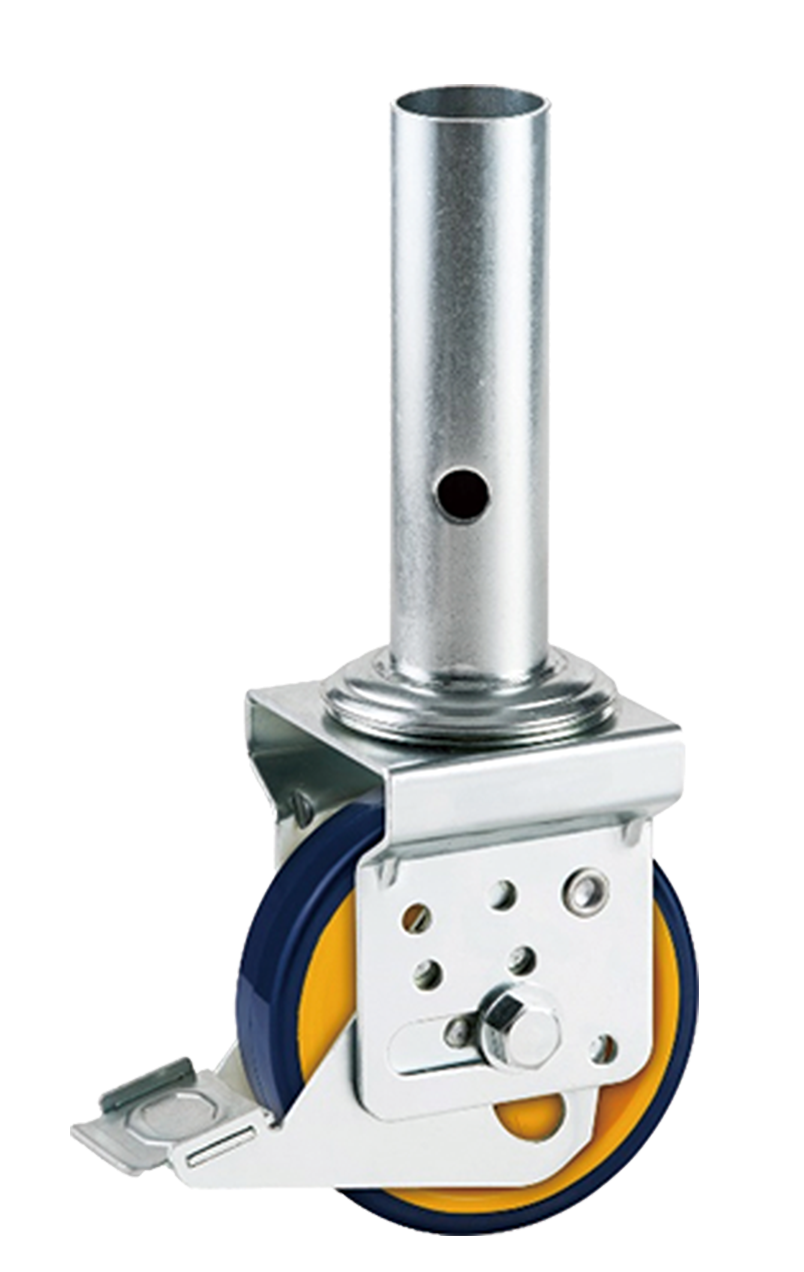

Home | Scaffold caster | Tube | HP12-B-8UPPS
Wheel size
-
125 mm( 5 inch)
Nylon
-
125 mm( 5 inch)
PU
-
150 mm( 6 inch)
Nylon
-
150 mm( 6 inch)
PU
-
200 mm( 8 inch)
PU
-
200 mm( 8 inch)
Nylon
Capability Data
-
SWL
(kg/pc)0600 kg/pc
-
Safety factor
3
-
Deformation after testing max load for 5 times
(mm)< 15
Specification Sheet
Compliance
Compliance |
200 mm PU/PP |
Wheel size
Wheel size |
EN1004 |

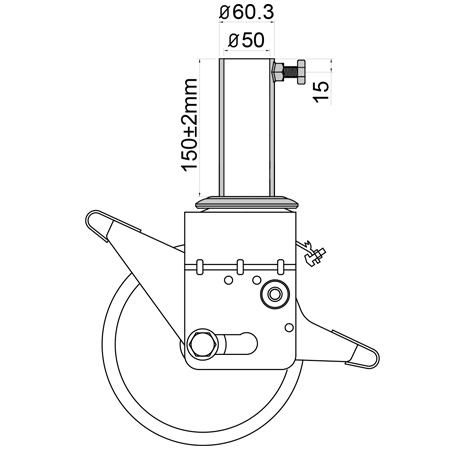

Specification
Fitting |
50x60.3x150 mm (ID. x OD. x Length) |
SWL |
600 kg/pc |
Wheel
Wheel diameter |
200 mm |
Wheel width |
50 mm |
Wheel Material |
PU |
Function
Brake |
Total lock |
Fitting type
Application
