Scaffolding Casters (also known as Scaffolding Wheels) are essential components that ensure the safety, stability, and maneuverability of Mobile Scaffolding structures. The correct installation method is critical—it not only relates to construction efficiency but also directly impacts the safety of personnel working at height. Different installation designs, HAION Caster, provide unique advantages to suit various construction environments and Load Capacity requirements.

Advantages of Different Scaffolding Caster Installation Methods

Selecting the appropriate Scaffolding Caster installation method provides the following key benefits:

• Enhanced Stability and Scaffolding Safety: Correctly engaged installation mechanisms effectively prevent the scaffold from accidental sliding or tipping, both when moving and stationary, which is vital for operations at elevation, and maximizing HAION Caster safety.
• Optimized Height Adjustment Flexibility: Many casters featuring a threaded design allow construction workers to easily perform precise Height Adjustment to accommodate uneven ground surfaces.
• Increased Load Capacity and Durability: Different core materials and shell designs (such as solid steel core or pipe) provide stronger heavy-duty load capacity and extended service life, meeting the demands of harsh construction sites. Haion Caster quality ensures reliability.
• Improved Installation and Dismantling Efficiency: Well-designed Secure Locking mechanisms can accelerate the assembly and relocation process of the scaffolding, saving valuable working hours.

6 Common Scaffolding Caster Installation Methods

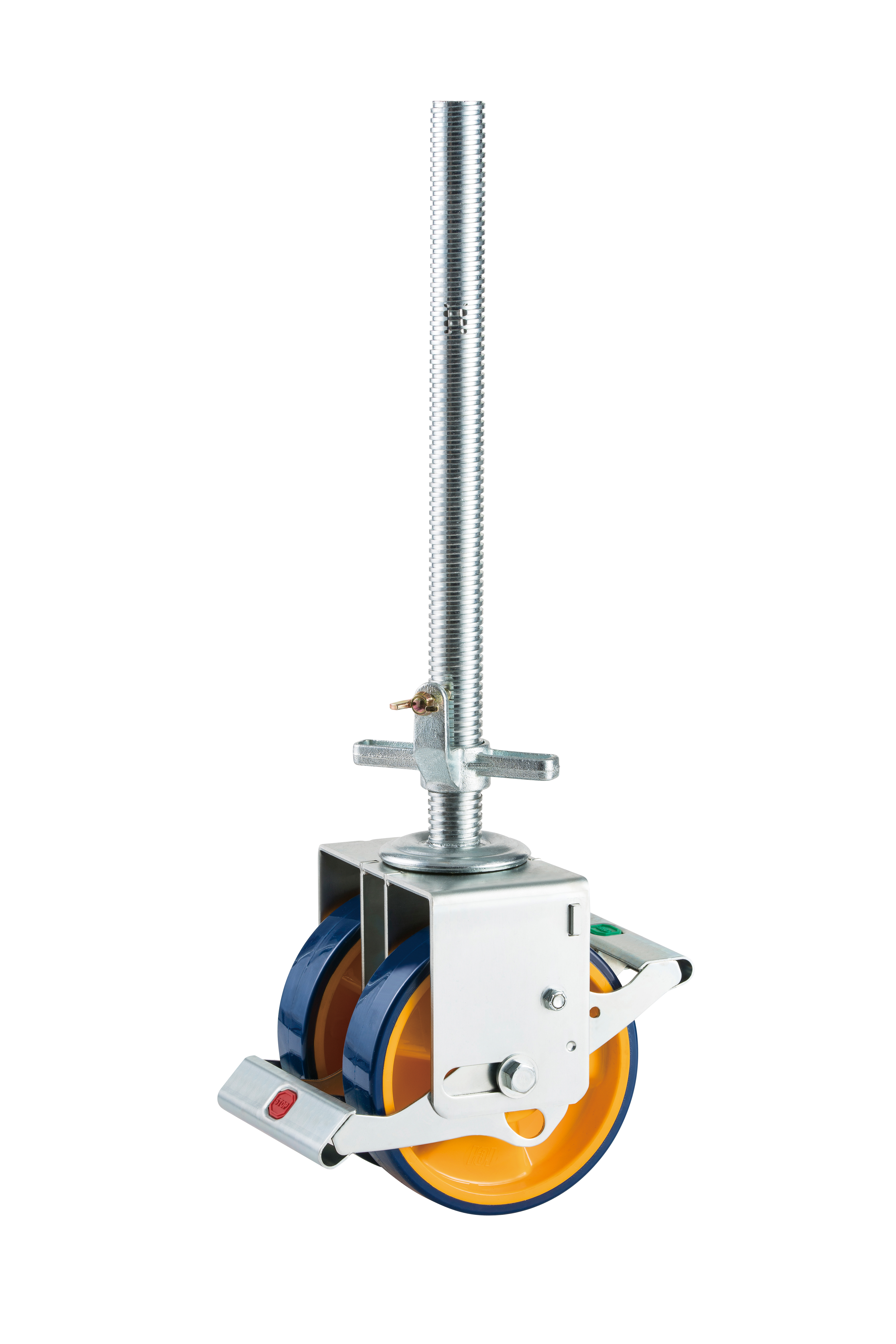

1. Spindle and Nut
This type is typically features a T-bar for easy manual height adjustment. A critical break point mark on the thread stem indicates the minimum secure locking position required for the Haion caster to be firmly fixed within the scaffolding tube, ensuring structural stability.

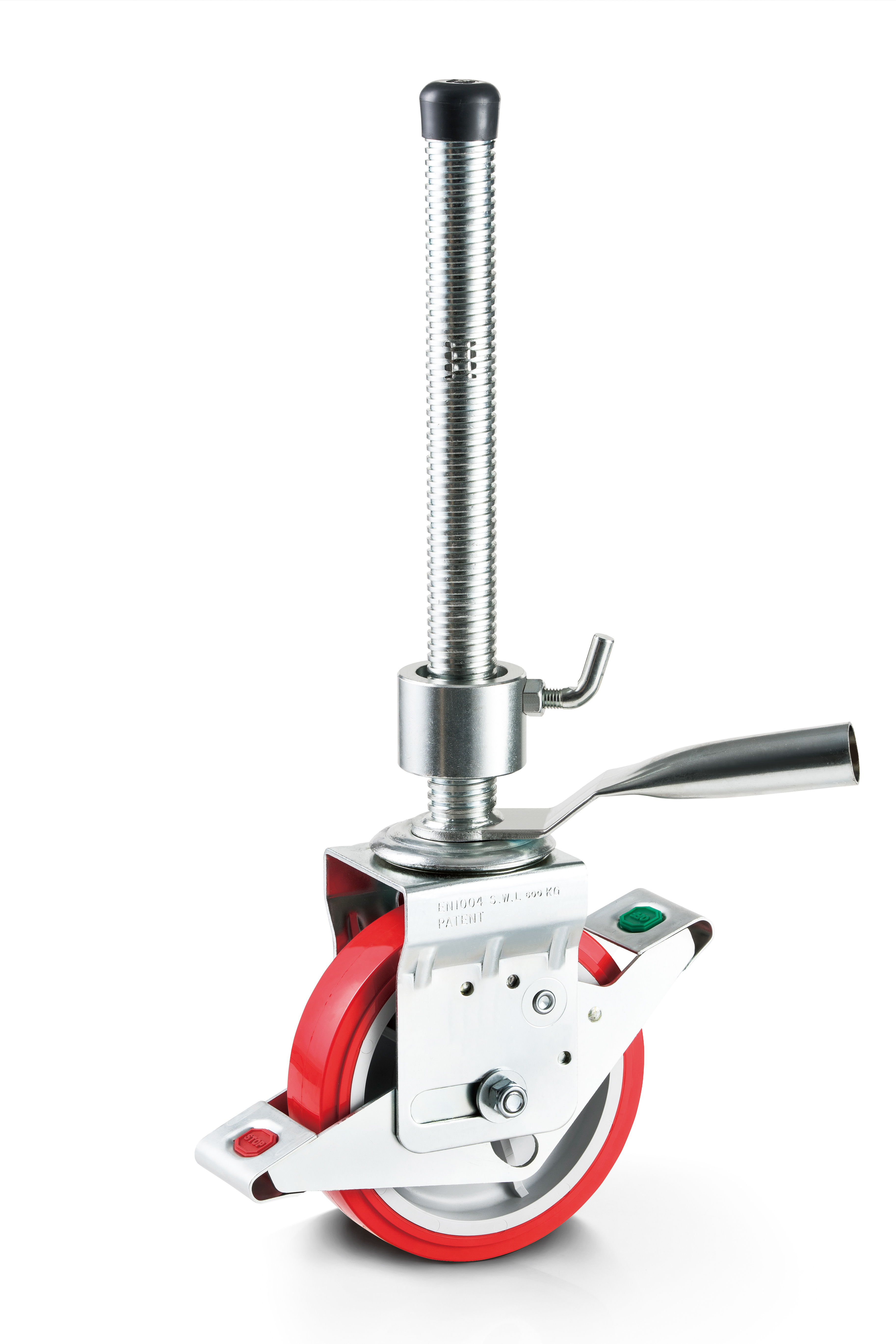

2. Aluminum spindle and Nut:
The HAION Caster Aluminum spindle type is distinctive for its two triangular blocks, which ensure precise positioning. Their design securely locks the round pipe into an exact center position, preventing rolling or movement during the locking process for superior centering stability.

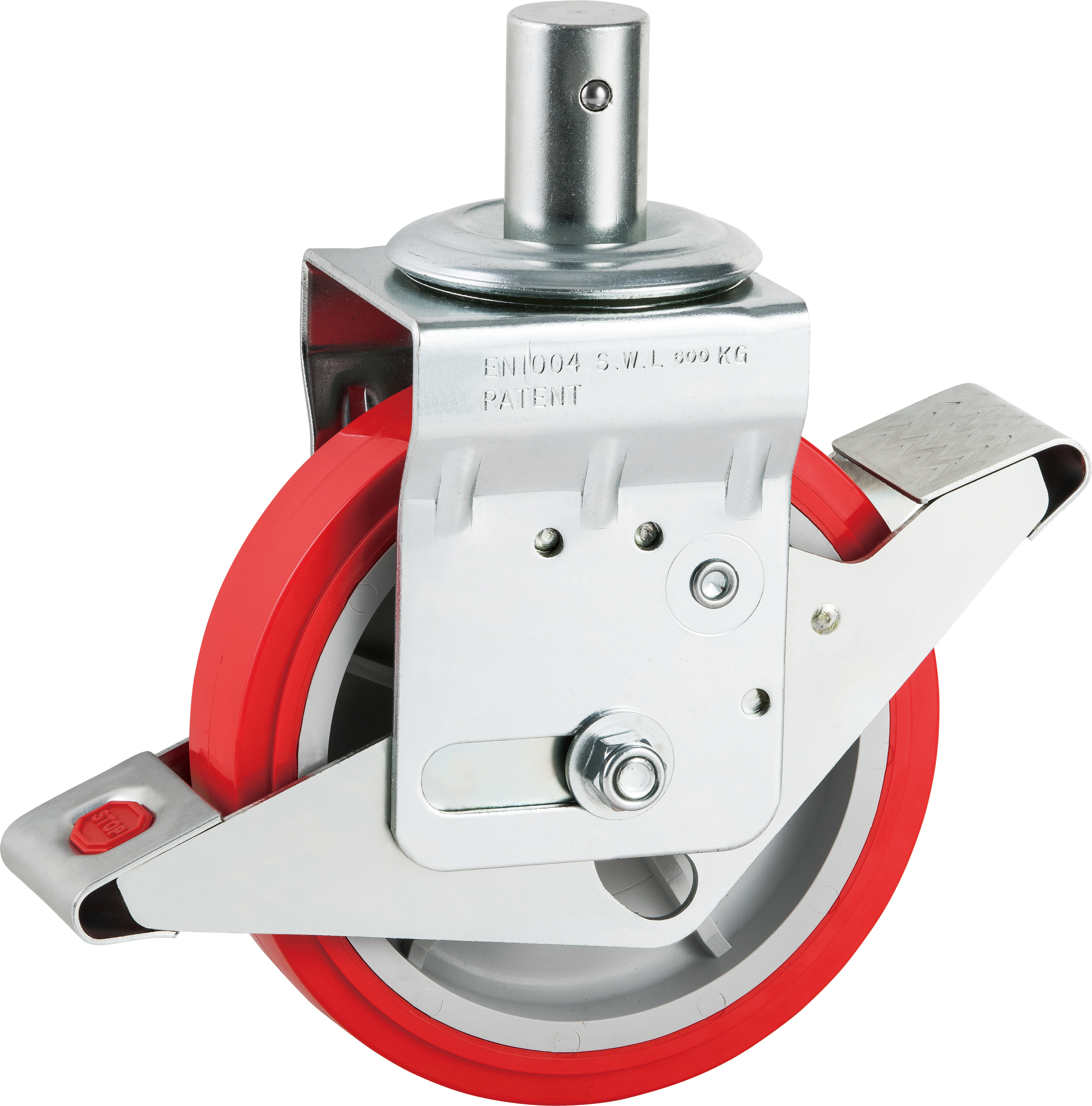

3. Solid Stem
The Steel Core Type utilizes a stem made from solid steel material. This solid design provides the caster with extremely high strength and rigidity.

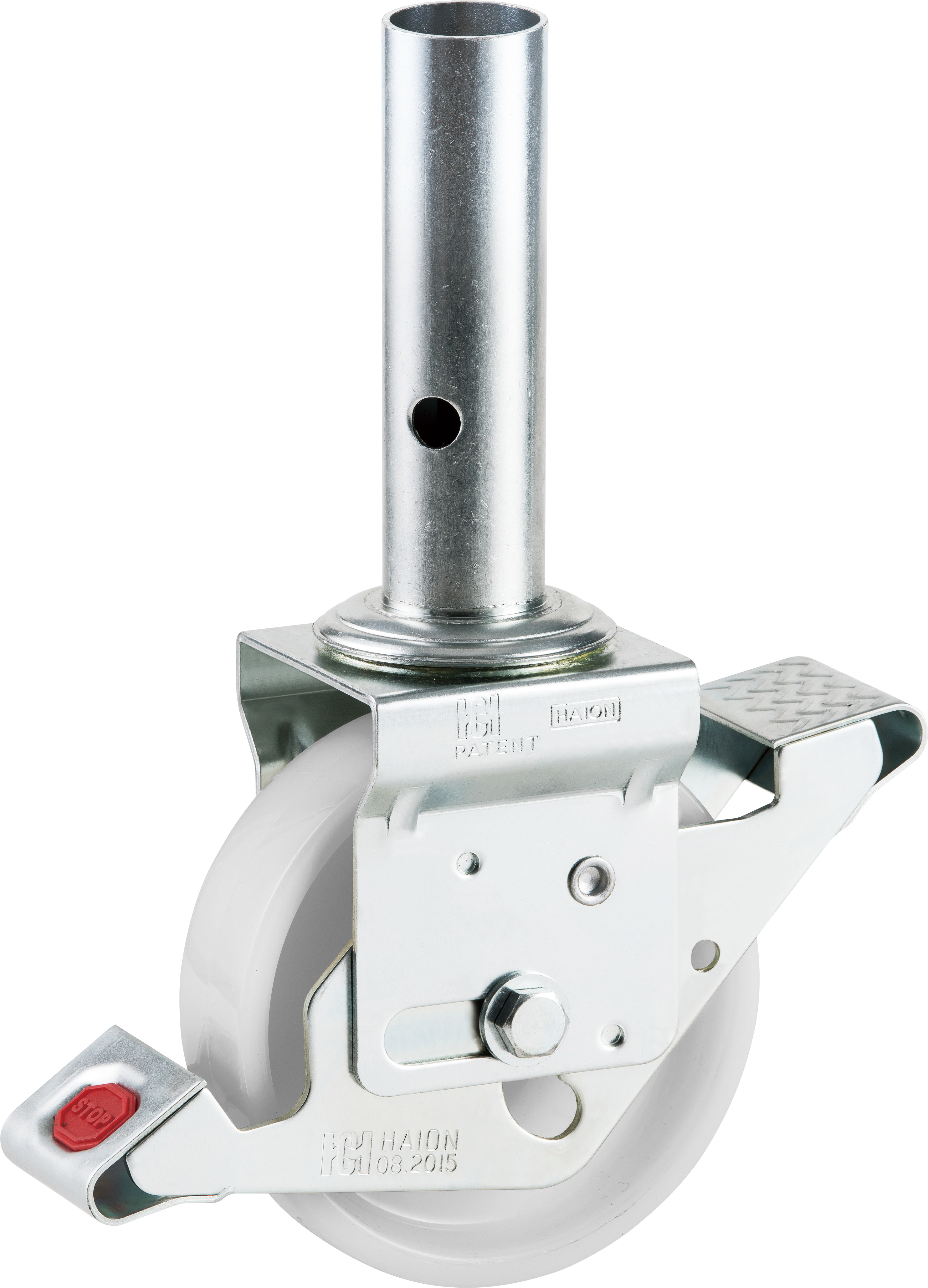

4. Tube(Pipe)
This Haion caster uses a stem constructed from hollow steel pipe. Compared to the Steel Core Type, its advantage is lighter weight, while still maintaining good structural integrity. It is suitable for standard Load Capacity needs and for Mobile Scaffolding requiring a degree of weight reduction, offering a favorable cost-efficiency balance.



5. Tube(Pipe) with solid stem welded inside
It is an advanced composite design. It combines the core strength of the Solid Stem Type with the protective wall of the Tube(Pipe) Type, making the HAION Caster more reliable against heavy pressure and impact, thus enhancing Load Capacity and durability.

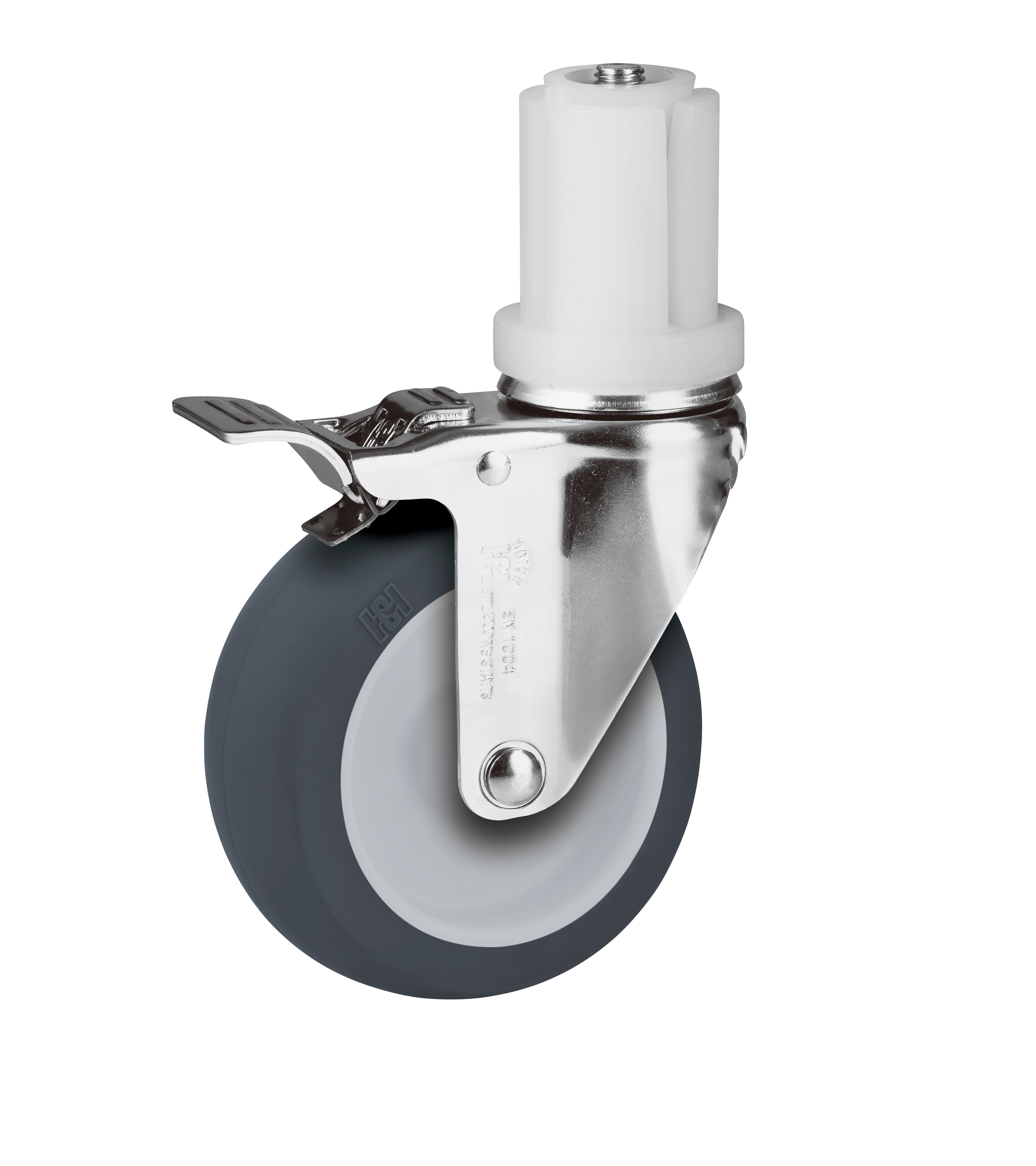

6. Nylon Expander
This is a special expansion-type installation fitting. When activated, the outer material expands, clamping and completely encasing the scaffolding pipe. This HAION Caster installation method provides an extremely tight, seamless, friction-based lock that adapts to different pipe diameter tolerances for maximum Scaffolding Safety.

Choosing Your Ideal HAION Scaffolding Caster Method

The correct Scaffolding Wheel installation method is the cornerstone of Mobile Scaffolding safety and job site efficiency.
When purchasing HAION Scaffolding Casters, ensure that your chosen installation method complies with all relevant Scaffolding Safety regulations, making your construction project both fast and secure.
