Compare
Advantage
Medical H282-3A
Patient's safety is ensured by the durable brake system
More
Patient friendly for getting in and out of bed
More
Effortless, stable, and noiseless movement
More
點此瀏覽產品資訊

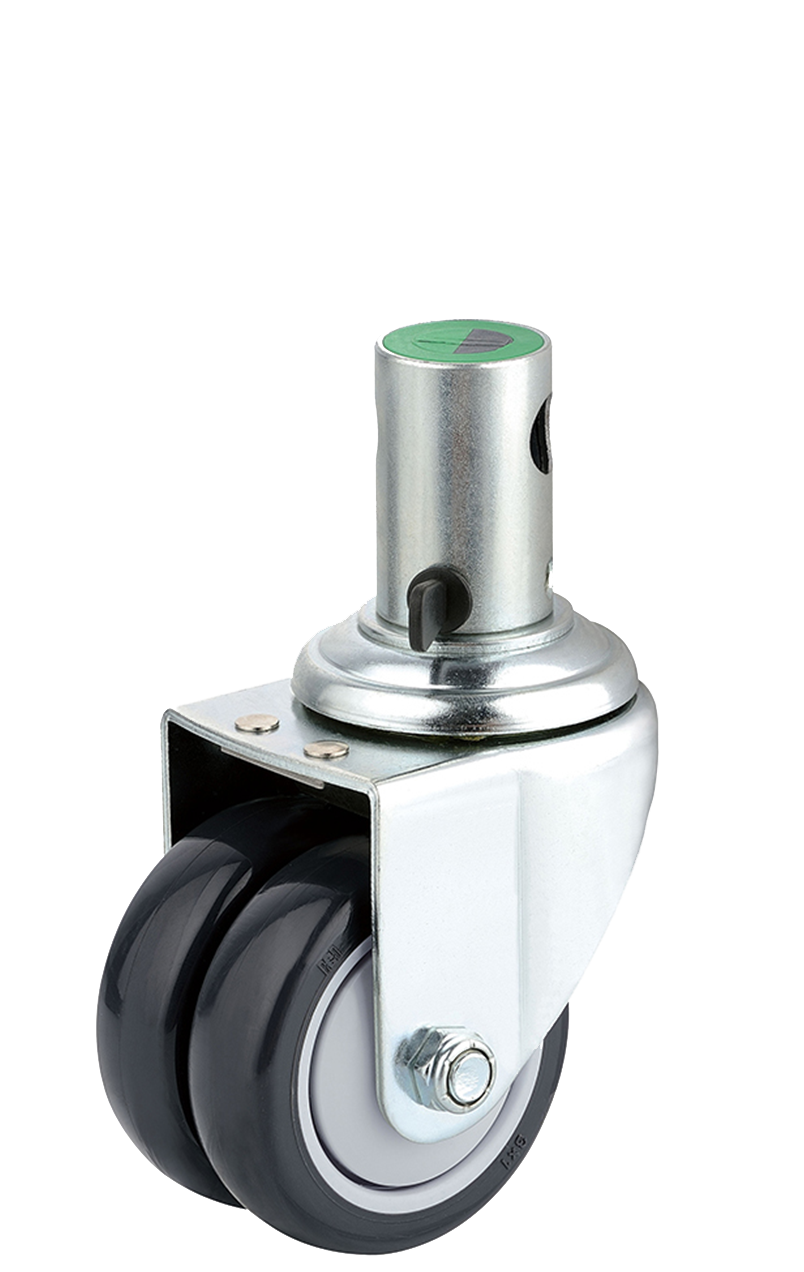

Home | Medical caster | Double wheel central locking caster | H282-3A075UPB(3FN)
Wheel size
-
50 mm( 2 inch)
PU (Polyurethane)
-
75 mm( 3 inch)
PU (Polyurethane)
Capability Data
-
Braking Life
(cycles)10000+
-
Dynamic load
(kg/pc)100
-
Static load
(kg/pc)300
Specification Sheet
Compliance
Compliance |
EN12531 & RoHs |

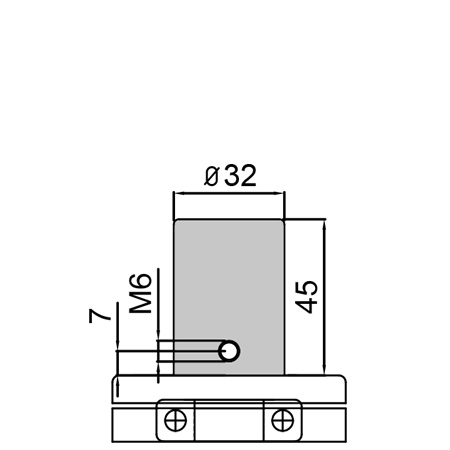

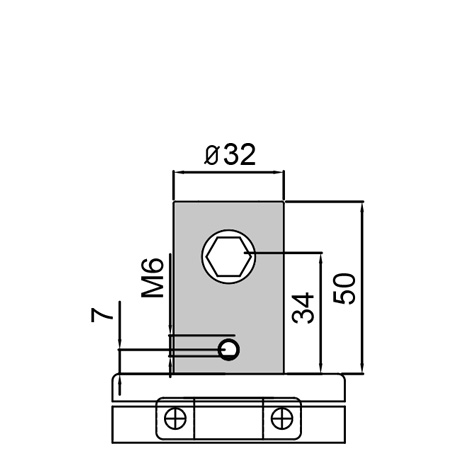

Specification
Fitting |
32x50 mm |
Total height |
110 mm |
Offset |
31 mm |
Dynamic load |
100 kg/pc |
Static load |
300 kg/pc |
Wheel
Wheel diameter |
75 mm |
Wheel width |
50 mm |
Wheel Material |
PU (Polyurethane) |
Brake function
Brake function |
Swivel+ Total lock + Direction lock |
Color
|
Color |
Zinc |
Fitting type
Application
