Compare
Advantage
Medical H391A-1A
Patient's safety is ensured by the durable brake system
More
Capable of handy turning even under heavy load.
More
Delivery safety is provided by the metal housing and metal brake system even in emergency.
More
Effortless, stable, and noiseless movement
More
Reduce 15-20% moving force for delivery man
More
點此瀏覽產品資訊

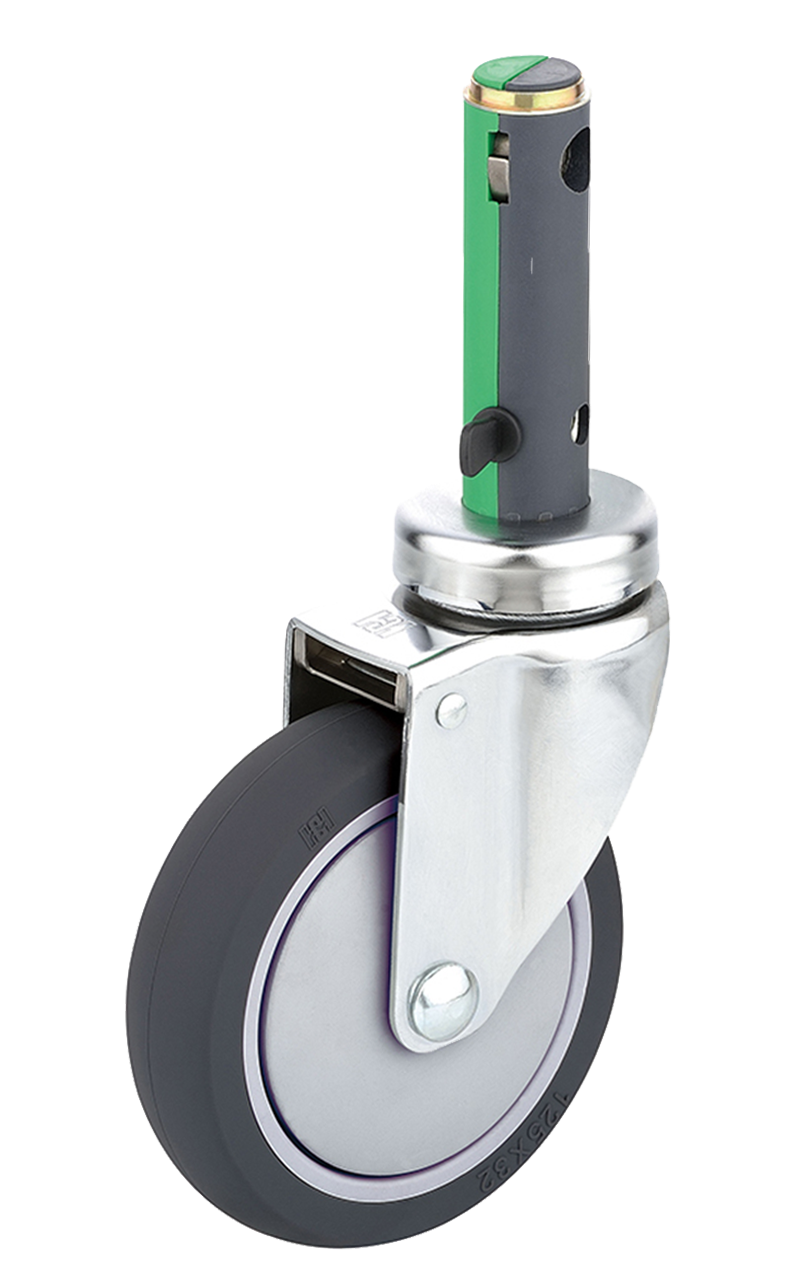

Home | Medical caster | Single wheel central locking caster | H391A-1A200UPB(3FN)
Wheel size
-
100 mm( 4 inch)
PU (Polyurethane)
-
125 mm( 5 inch)
PU (Polyurethane)
-
150 mm( 6 inch)
PU (Polyurethane)
-
200 mm( 8 inch)
PU (Polyurethane)
Capability Data
-
Braking Life
(cycles)10000+
-
Dynamic load
(kg/pc)150
-
Static load
(kg/pc)450
Specification Sheet
Compliance
Compliance |
EN12531 |
Specification
Fitting |
28x96 mm |
Total height |
236 mm |
Offset |
60 mm |
Dynamic load |
150 kg/pc |
Static load |
450 kg/pc |
Wheel
Wheel diameter |
200 mm |
Wheel width |
32 mm |
Wheel Material |
PU (Polyurethane) |
Brake function
Brake function |
Swivel+ Total lock + Direction lock |
Additional option
Electric conductive |
Available |
Antistatic |
Available |
PAS (Power Assist System) |
Available |
Color
|
Color |
Chrome |

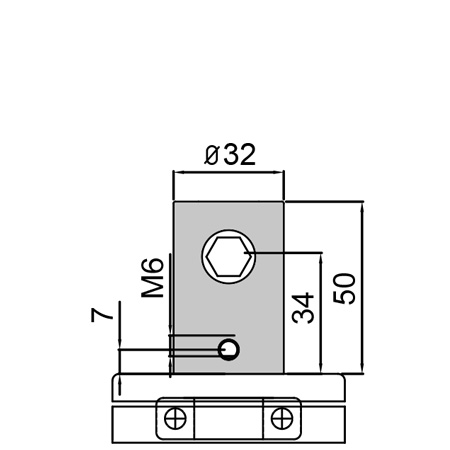

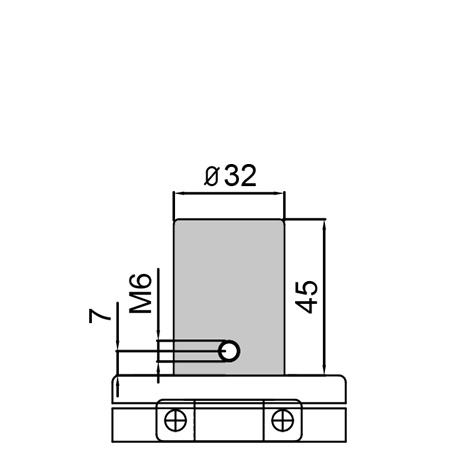

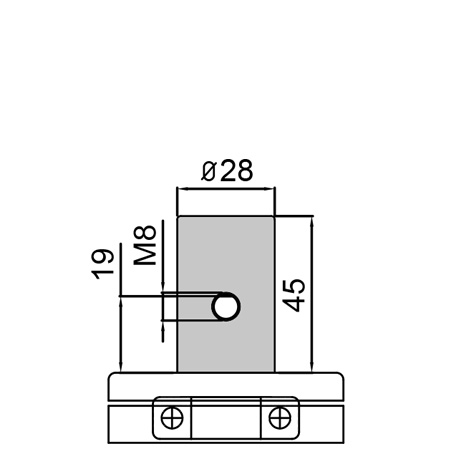

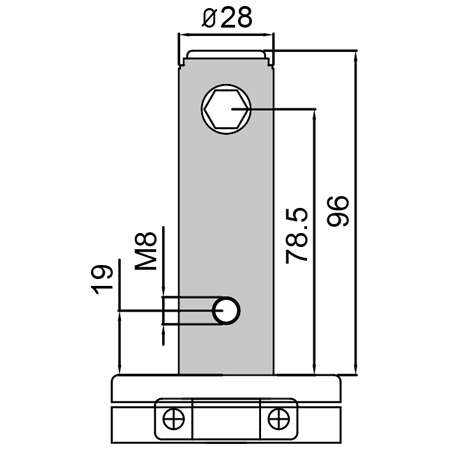

Fitting type

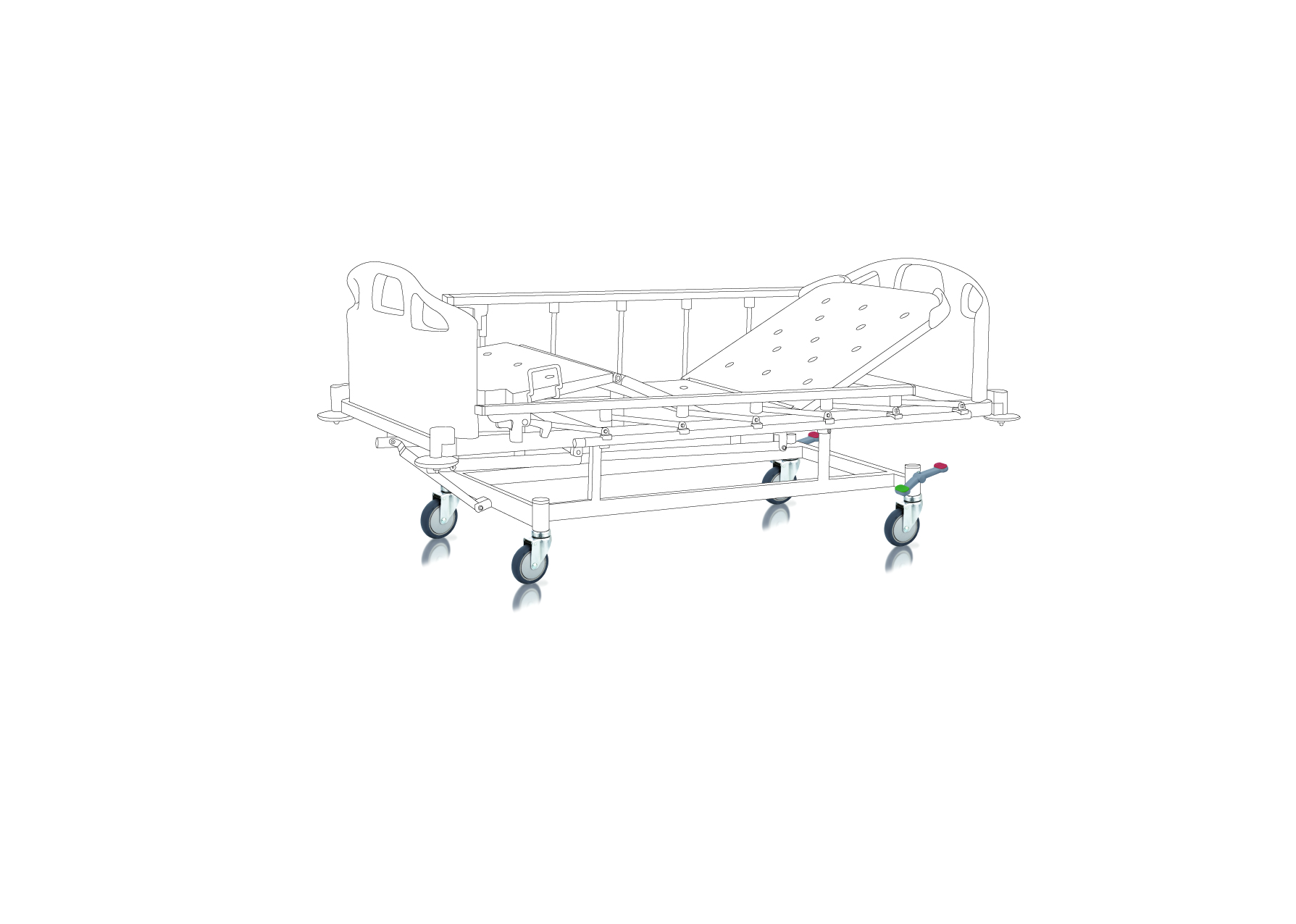

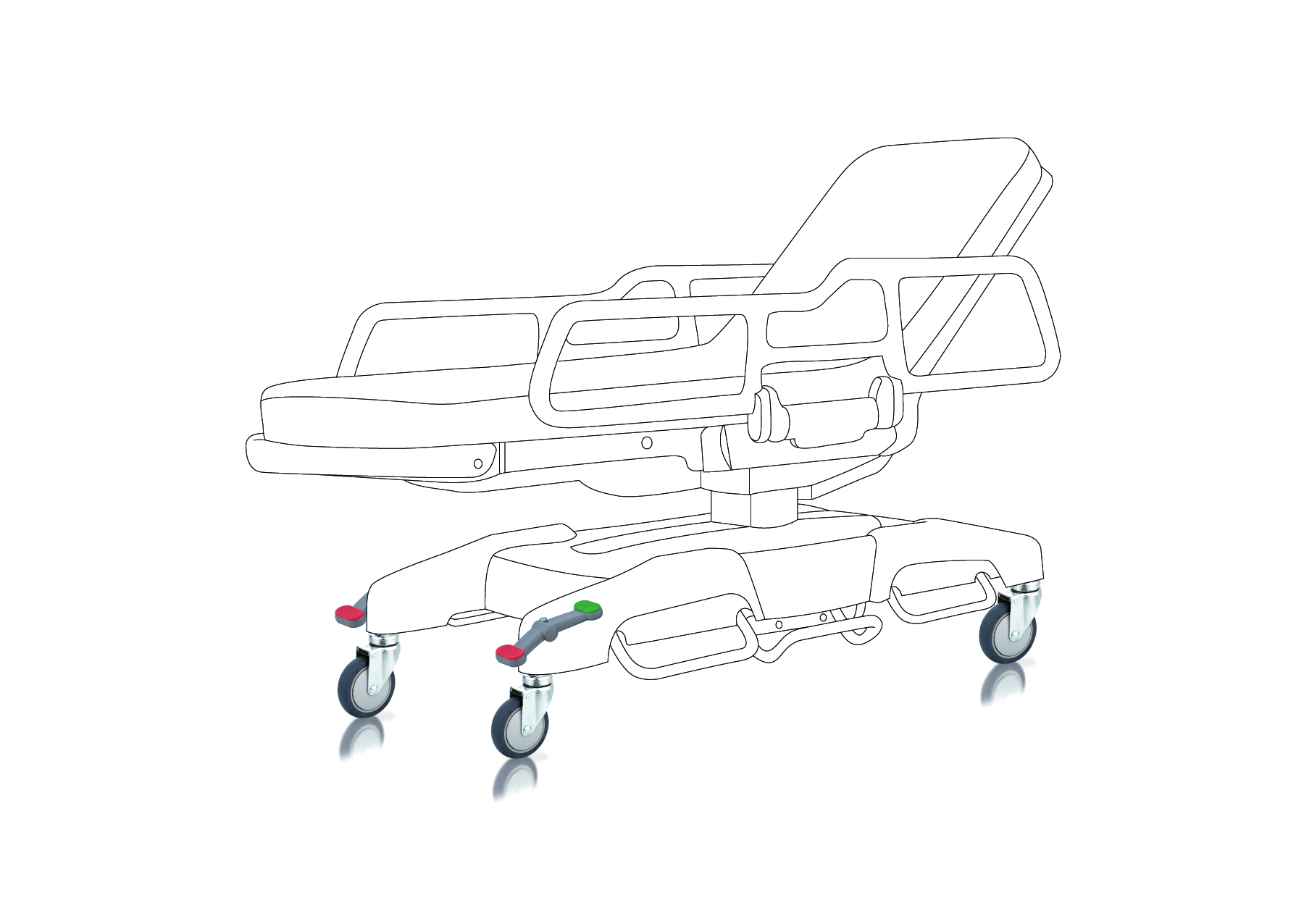

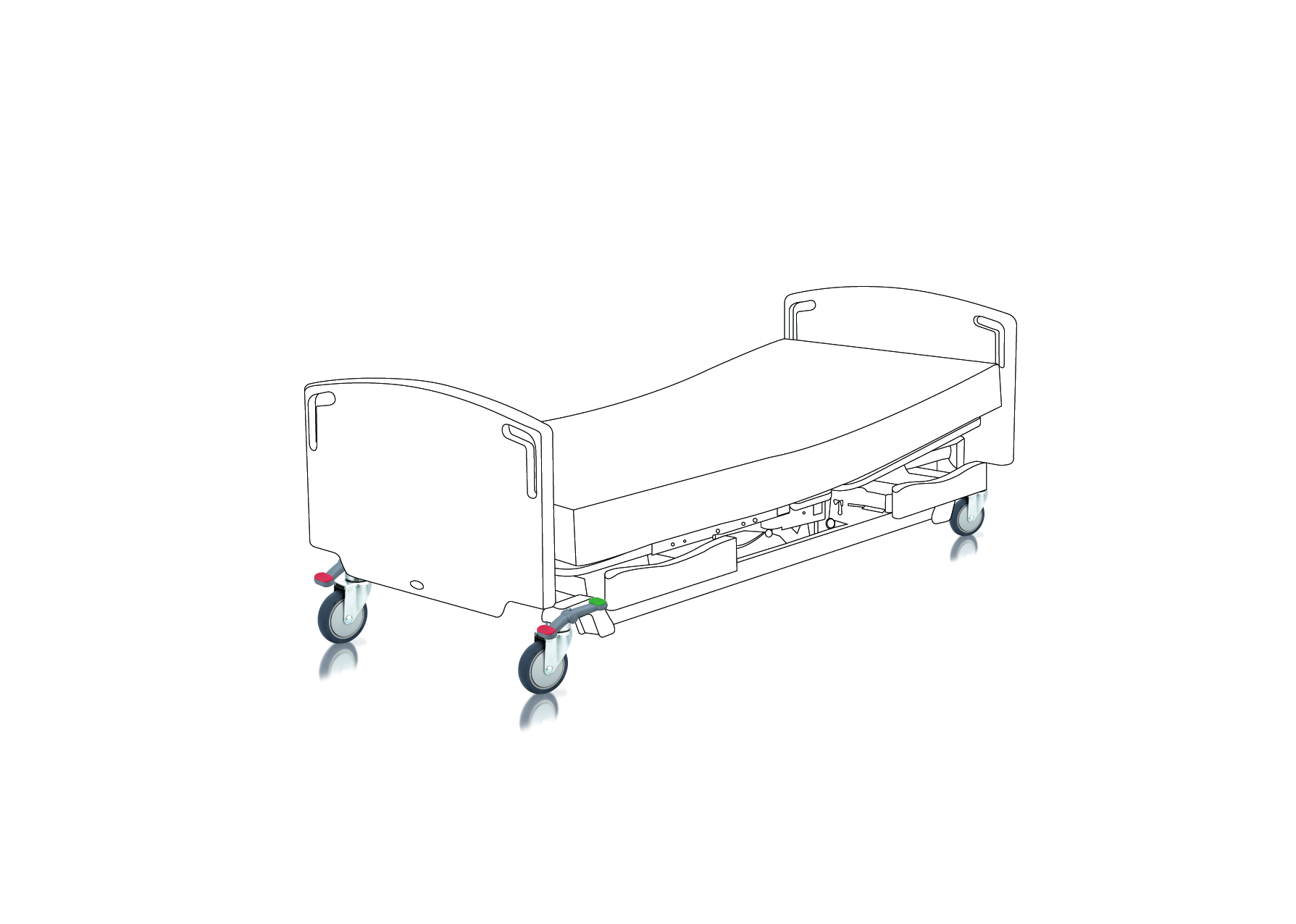

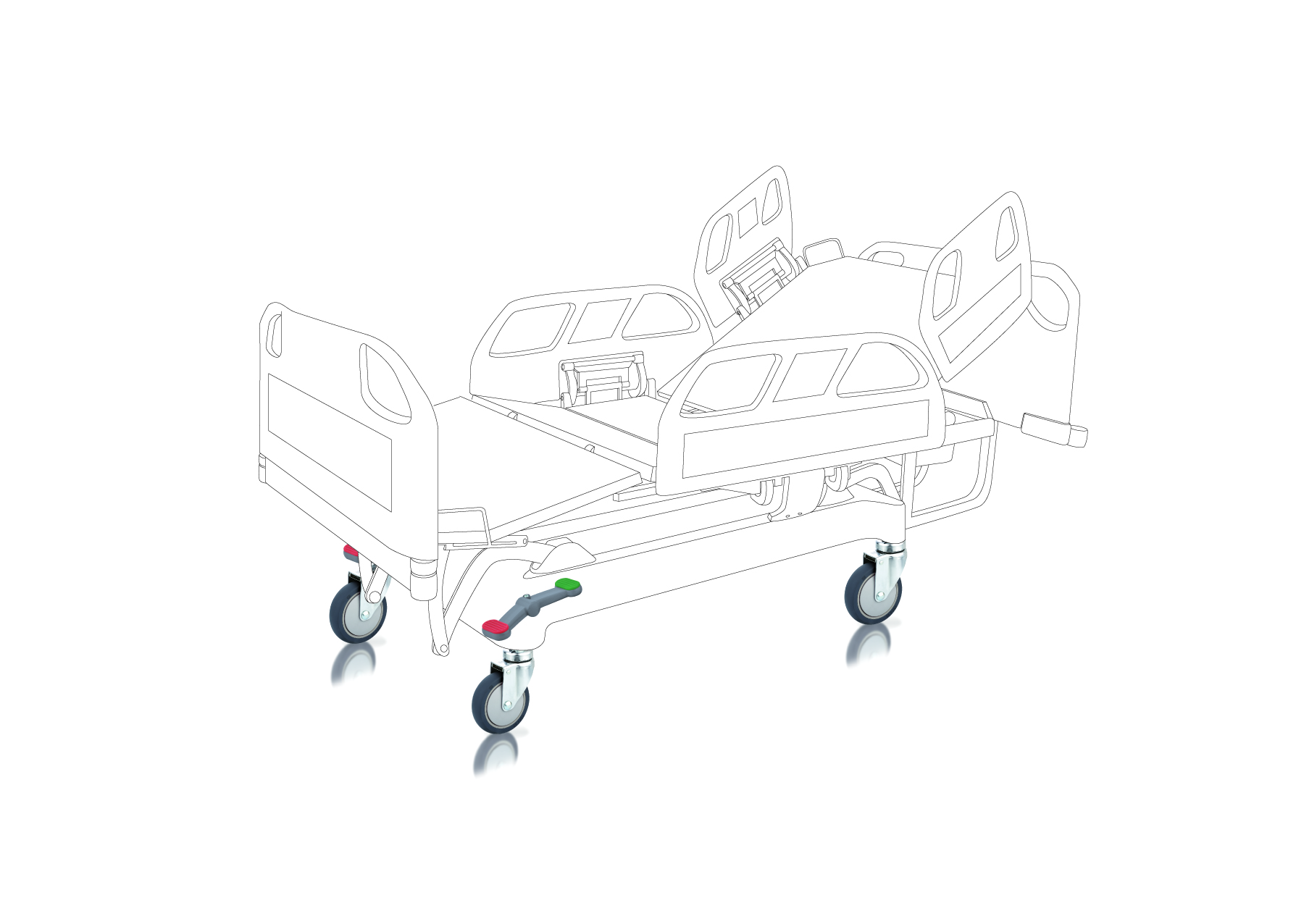

Application
