Compare
Advantage
Motorized system PAS
Enables one person of any strength to easily move heavy equipments
More

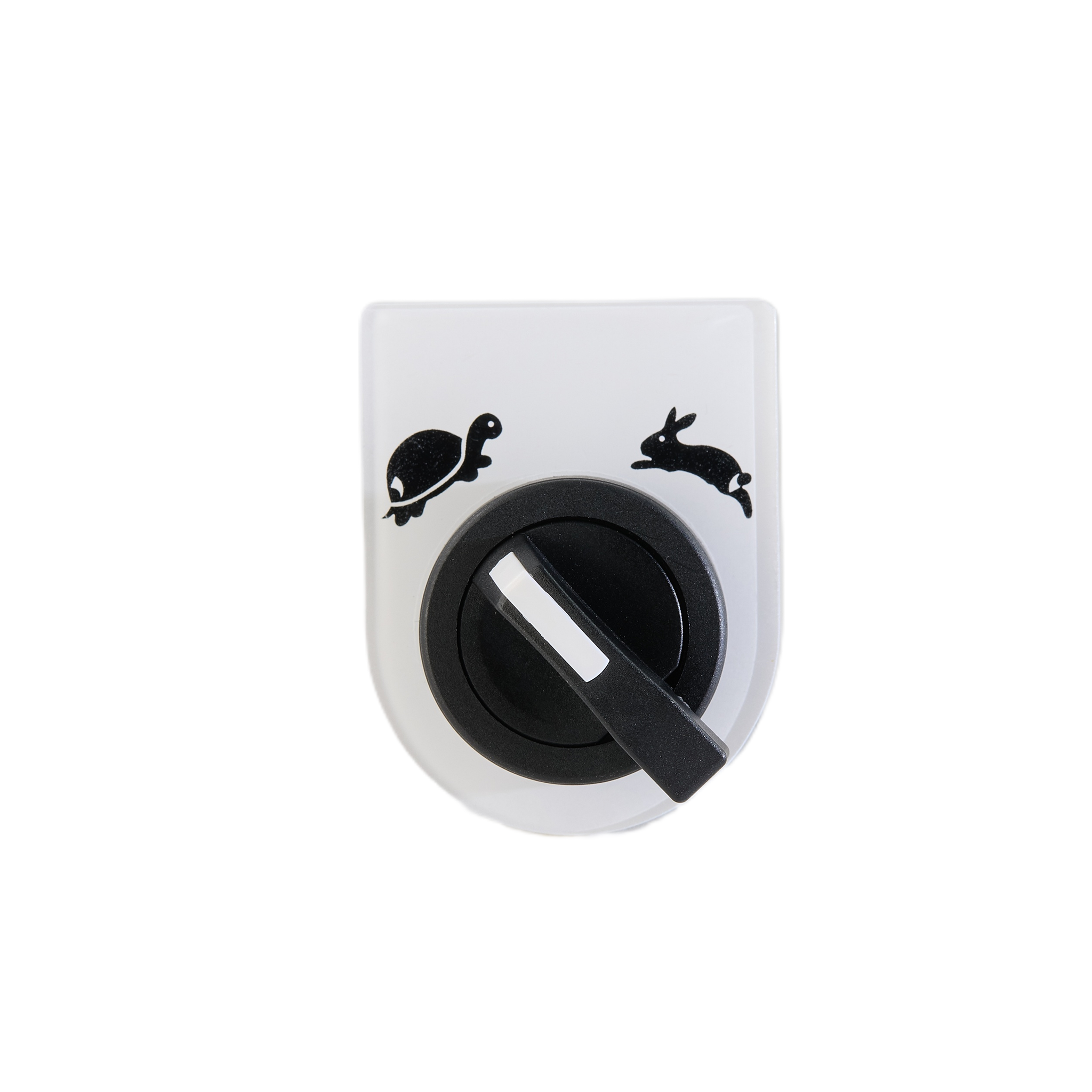

2 sections of forwarding speed are available against differenet moving environment
More
Electric brake helps to lower down the moving speed without taking man power
More
The equipment is still manually movable if desired
More
Max loading reaches up to 600 kg
More
Shock-absorbing while move across the gaps or uneven floor
More
點此瀏覽產品資訊

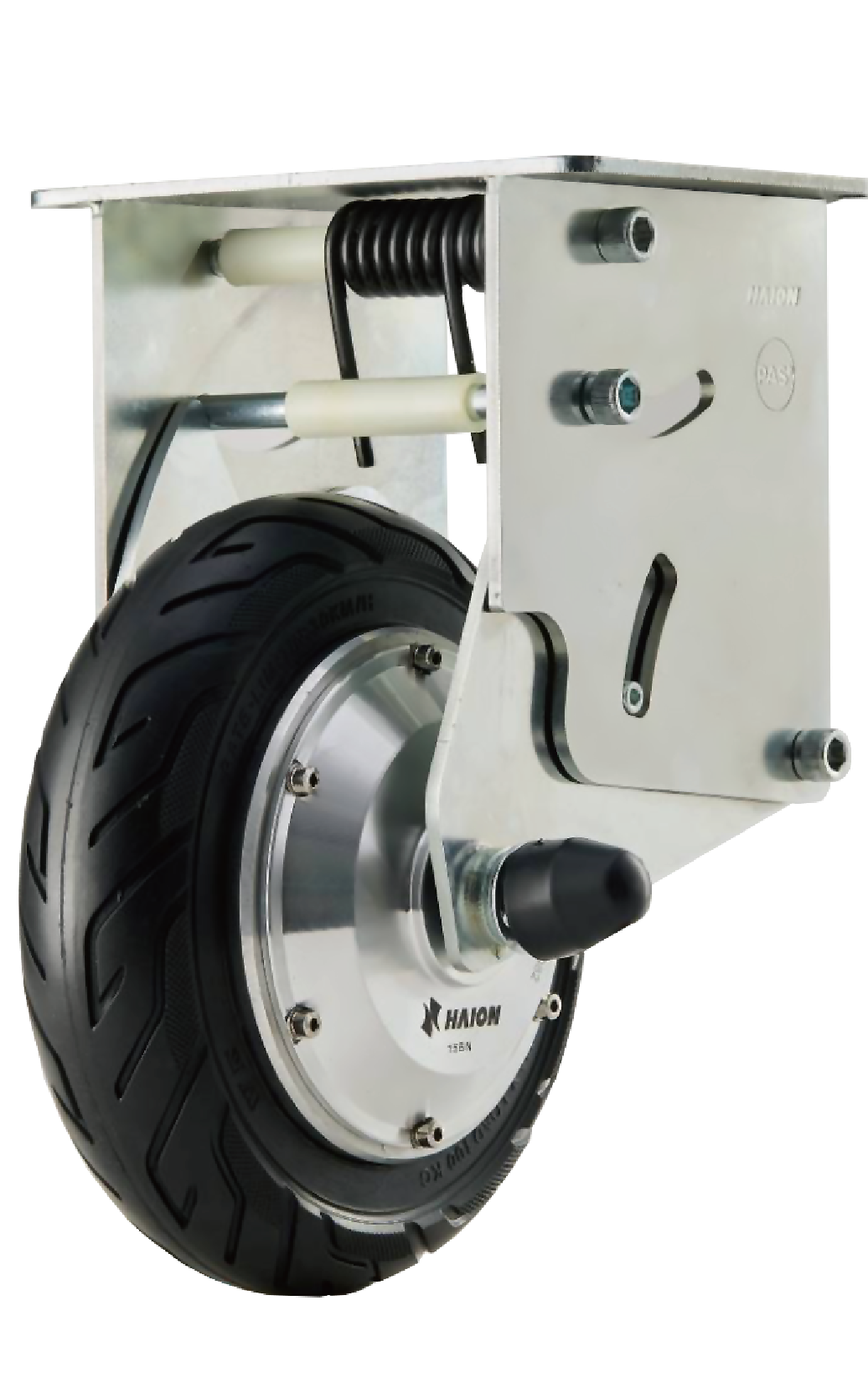

Home | PAS (Motorized system) | Loding: 1~600 kg | P8A
Wheel size
-
200 mm( 8 inch)
Rubber (none marking)
Capability Data
-
Max Loading
(kg)600
-
Max Speed
(km/hr)5
-
Torque
(Nm)20
Specification Sheet
Wheel size
Wheel size |
200 mm (8 inch) |
Motor
Nominal voltage |
24 V |
Nominal current |
10A/12A max |
Nominal power |
250 W |
Nominal torque |
22 Nm |
Nominal speed |
2 km/hr & 4 km/hr |
Recommended loading |
600 kg |
Wheel material |
Rubber (none marking) |
Direction of travel |
Forward & Backward |
Specification
Length |
175 mm |
Width |
148 mm |
Height |
250±25 mm |
Weight |
7.8 kg |
Battery
Battery type |
Lead acid battey |
Energy |
336Wh(14AH/12V*2) |

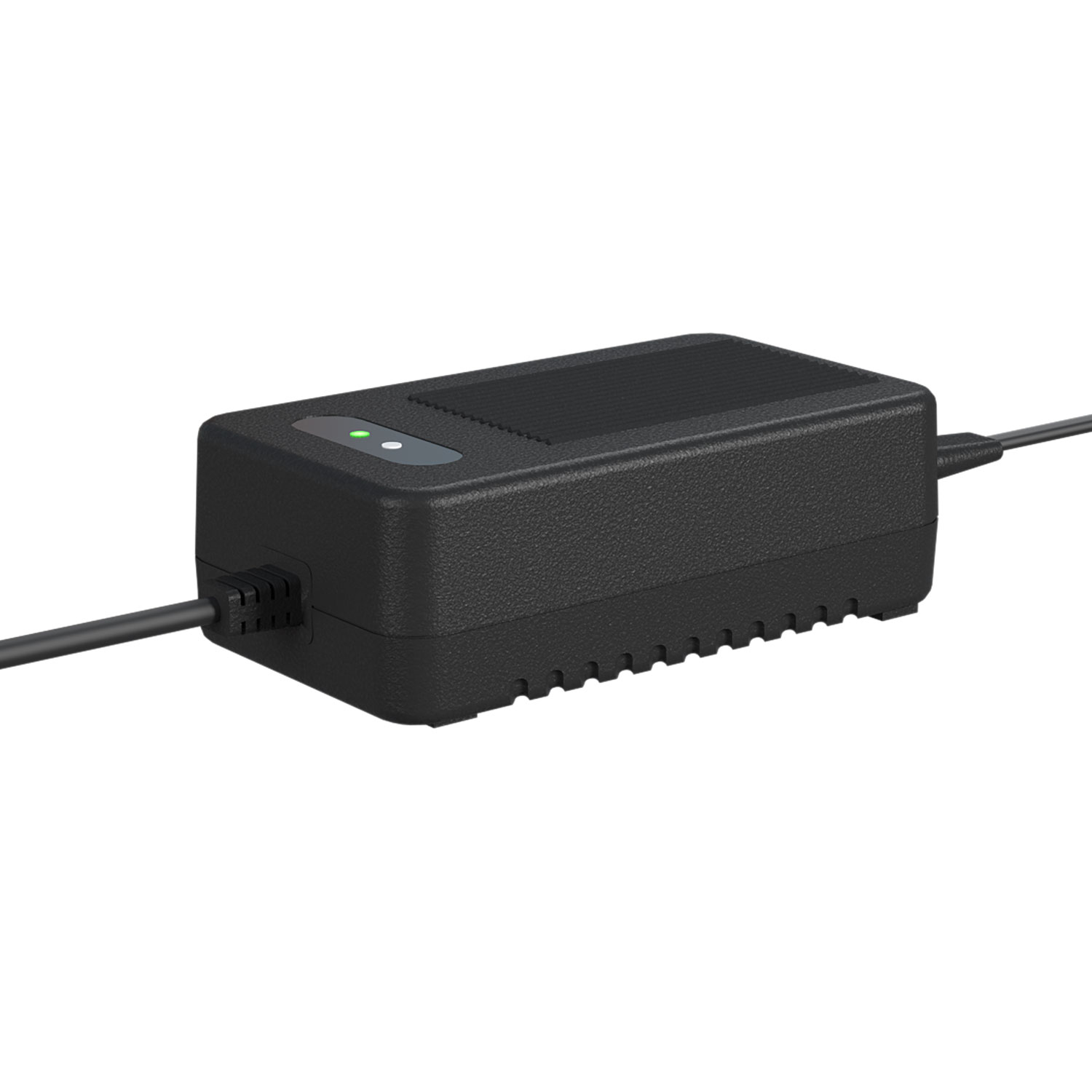

Charging time |
8 hours |
Measurements |
98 x 151 x 97.5 mm (W x D x H) *2 |
Condition of use
Temperature |
-10~50°C (14~122°F) |
IP index |
IPX4 |

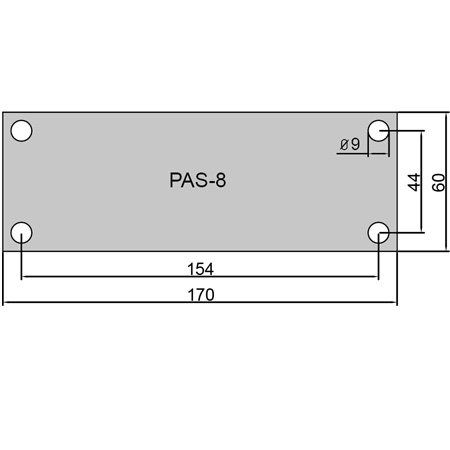

Fitting type

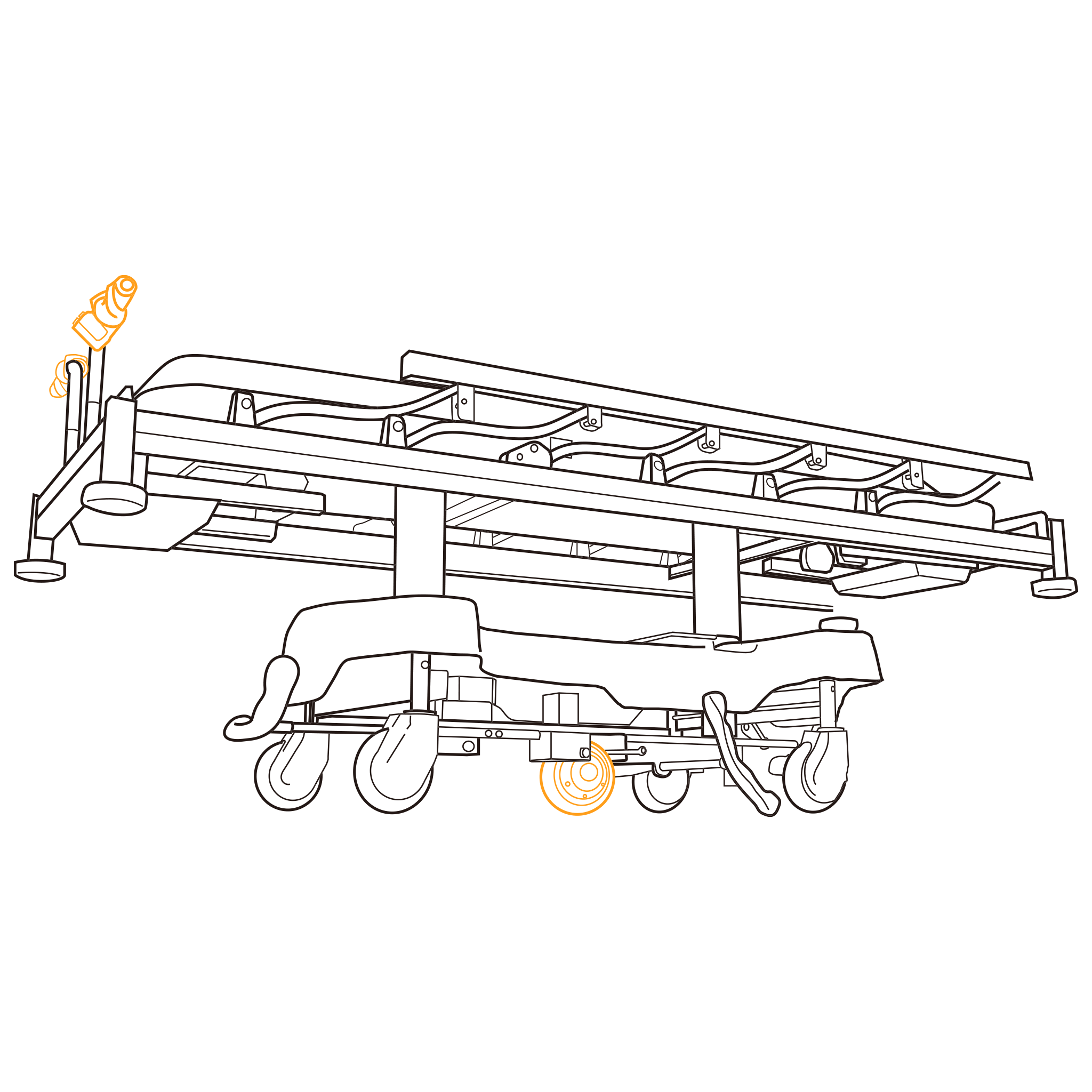

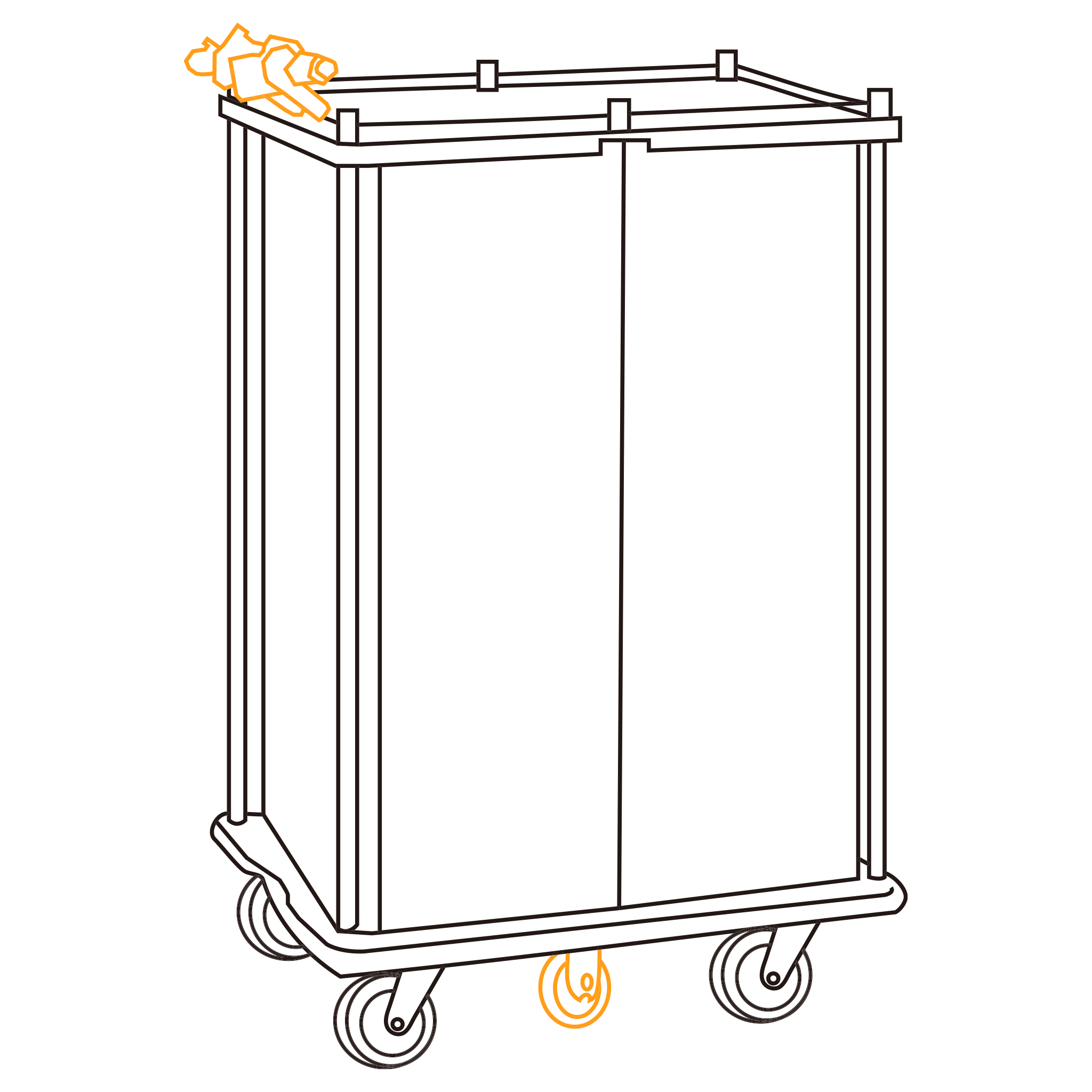

Application
Videos
